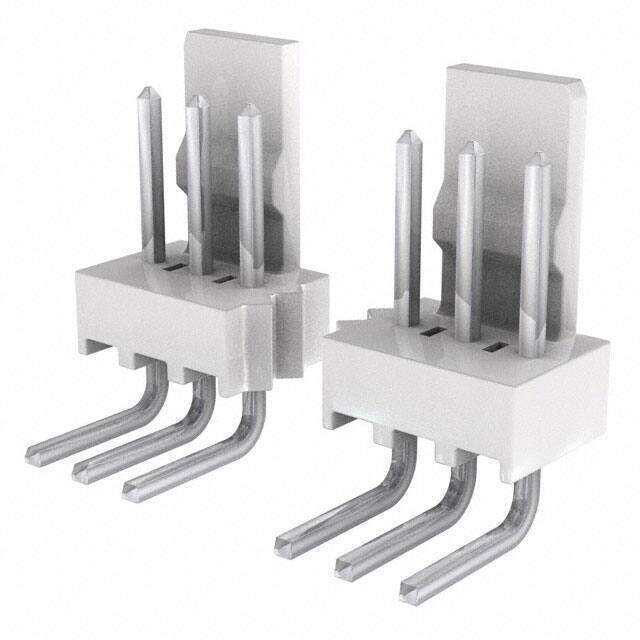

0022057148 image
Favorite
0022057148 image
Favorite

0022057148

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Wire to Board HDR 14 POS 2.54mm Solder RA Thru-Hole KK? Bag
PDF
/
Inventory: 6393
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm

Technical

UL Flammability Code 94V-0
Contact Length - Mating 0.264 6.70mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.150 3.81mm
Insulation Color Natural
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.228 5.80mm
Terminal Pitch 2.54mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Friction Lock
Additional Feature POLARIZED
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 14
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series KK 7395
Packaging Bulk

Physical

Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass

Supply Chain

Factory Lead Time 12 Weeks
