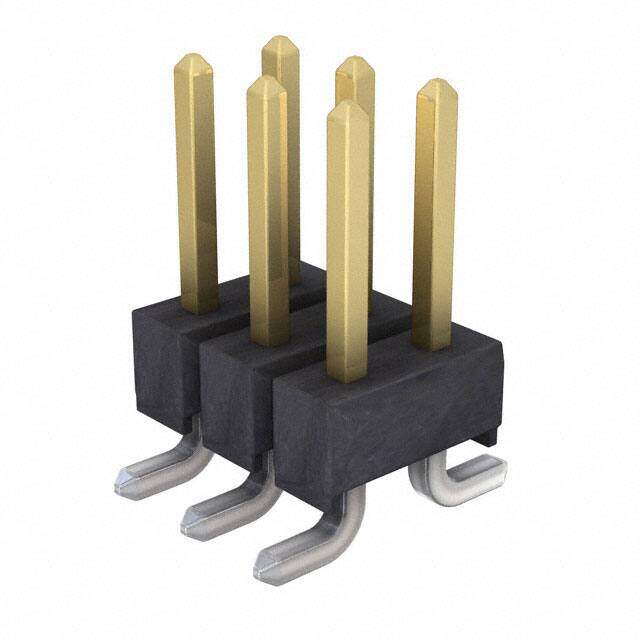

M20-8760342R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 03+03 DIL VERTICAL SMT HEADER GOLD+TIN
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.9152
≥1 USD $0.9152
≥10 USD $0.77528
≥100 USD $0.69608
Inventory: 3102
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 11.53mm 12.23mm 12.63mm 18.13mm
Length 7.62mm
Technical
Durability 300 Cycles
Dielectric Withstanding Voltage 1000VAC V
Max Current Rating 3A
Mating Contact Pitch 0.1 inch
Insulation Resistance 500000000Ohm
Contact Resistance 30mOhm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.197 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.228 5.80mm
Contact Finish - Post Tin
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Unshrouded
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Depth 6.3mm
Orientation Straight
Total Number of Contacts 6
Current Rating (Amps) 3A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Voltage - Rated 250V
Gender Male
Number of Rows 2
Number of Positions 6
Connector Type Header, Cuttable
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series M20
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
