RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

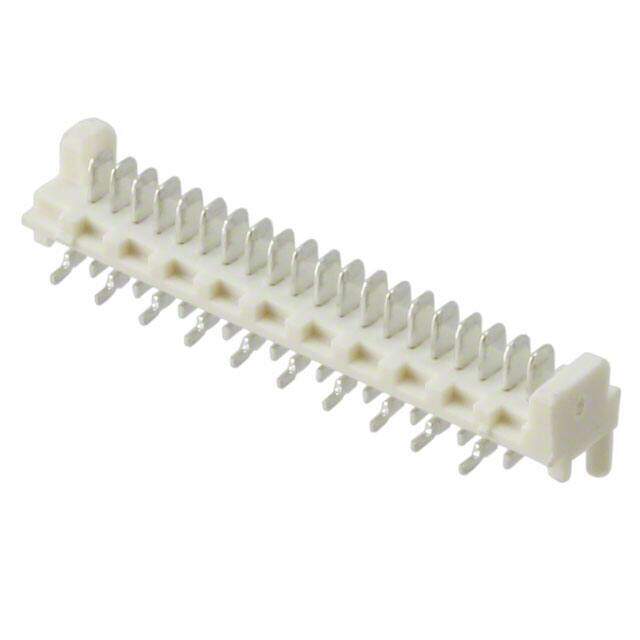

Headers & Wire Housings P/FLEX SMT H/R W/O P LEX SMT H/R W/O PEGS
PDF
/
Inventory: 5015
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Depth 6.9mm
Insulation Height 0.161 4.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2.4A
Pitch - Mating 0.050 1.27mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Shrouded - 2 Wall
Number Of PCB Rows 2
Contact Length - Mating 0.085 2.15mm
PCB Contact Pattern STAGGERED
UL Flammability Code 94V-0
Housing Color Beige
Contact Resistance 15mOhm
Mating Contact Pitch 0.05 inch
Number of Circuits 18
Max Voltage Rating (AC) 250V
Polarization Key POLARIZING PEG
Dielectric Withstanding Voltage 750VAC V
Durability 30 Cycles
Withdrawl Force-Min .2502 N
Orientation Vertical
Total Number of Contacts 20
Current Rating (Amps) 1.2A
Mixed Contacts NO
Contact Type Male Blade
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature POLARIZED
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 20
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Picoflex PF-50 90814
Packaging Bulk
Dimensions
Length 29.18mm
Contact Finish Thickness - Mating 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Rectangular
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Cartridge Brass
Alternative Model
