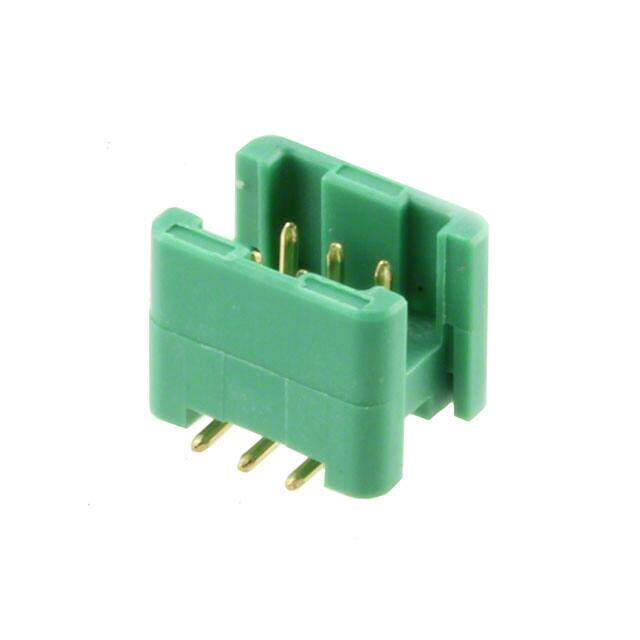

G125-MS10605L0P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 1.25MM M VERT SMT 2x3 POS
PDF
/
Buying Options
Total Price: USD $6.24
Unit Price: USD $6.2392
≥1 USD $6.2392
≥10 USD $5.63728
≥100 USD $4.936096
≥500 USD $4.156733
≥1000 USD $3.637146
Inventory: 140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Circular
Insulation Material Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Housing Material Polyamide
Weight 146.992277mg
Technical
Operating Temperature -65°C~150°C
Packaging Bulk
Published 2015
Series Gecko
Feature Pick and Place, Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Number of Rows 2
Voltage - Rated 450V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 2A per Contact
Total Number of Contacts 6
Insulation Height 0.193 4.90mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.049 1.25mm
Insulation Color Green
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.049 (1.25mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.193 inch
Body Depth 0.199 inch
Insulation Resistance 10GOhm
Mating Contact Pitch 0.05 inch
Durability 1000 Cycles
Dimensions
Contact Finish Thickness - Mating 8.00μin 0.203μm
Stack Height (Mating) 7.35mm 7.45mm 7.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
