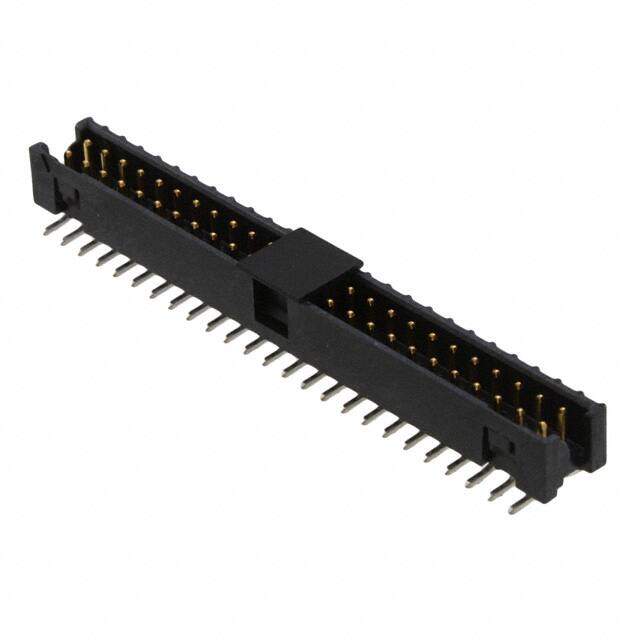

09195507914
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
COMMERCIAL UL POLARIZED HOUSING RECTANGULAR Connector BOARD EURO CONNECTOR 50Cycles 20mOhm 125C 2A
PDF
/
Inventory: 3135
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Connector Type BOARD EURO CONNECTOR
Number of Rows 2
Additional Feature STANDARDS: IEC 60603-13; DIN EN 60603-13
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating GOLD
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 50
Terminal Pitch 2.54mm
Reach Compliance Code compliant
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 3.272 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 125°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.335 inch
Contact Gender MALE
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Body Depth 0.681 inch
Rated Current (Signal) 2A
Contact Style SQ PIN-SKT
Contact Resistance 20mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Part Status Active
JESD-609 Code e4
Body/Shell Style RECEPTACLE
Termination Type SOLDER
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 2.54 mm
Durability 50 Cycles
Contact Finish Termination GOLD
Contact Pattern RECTANGULAR
Mating Contact Row Spacing 0.1 inch
Insulator Color BEIGE
Physical
Mounting Style STRAIGHT
Mounting Option 1 LOCKING
Insulation Material GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
Mounting Type BOARD
Contact Material COPPER ALLOY
Supply Chain
Factory Lead Time 7 Weeks
Dimensions
Length - Termination 0.114 inch
