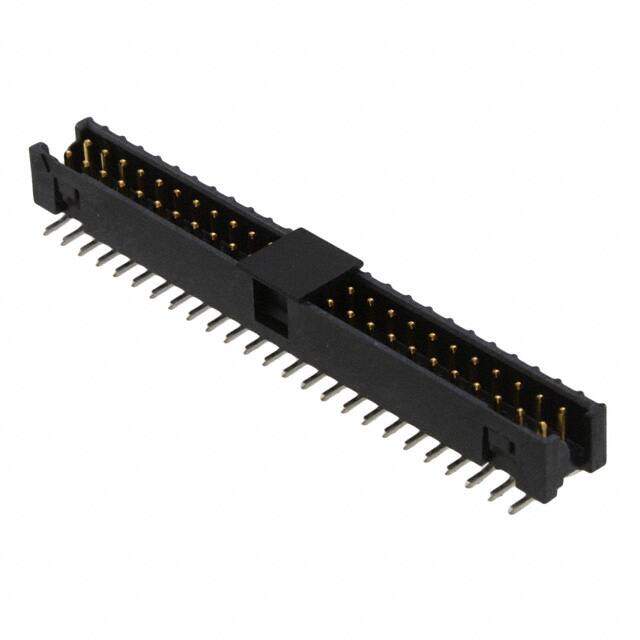

159150-2002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM 50POS VRT AU SMD
PDF
/
Inventory: 3768
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Housing Material Polymer
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2010
Series 159
Feature Keying Slot
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 50
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 150V
Fastening Type Detent Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1.25A
Pitch 2mm
Orientation Straight
Insulation Height 0.210 5.33mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Shrouded - 4 Wall
Number of Contacts 50
Contact Finish - Post Tin
Contact Length - Mating 0.142 3.61mm
Contact Gender Male
Mating Post Length 3.89mm
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
