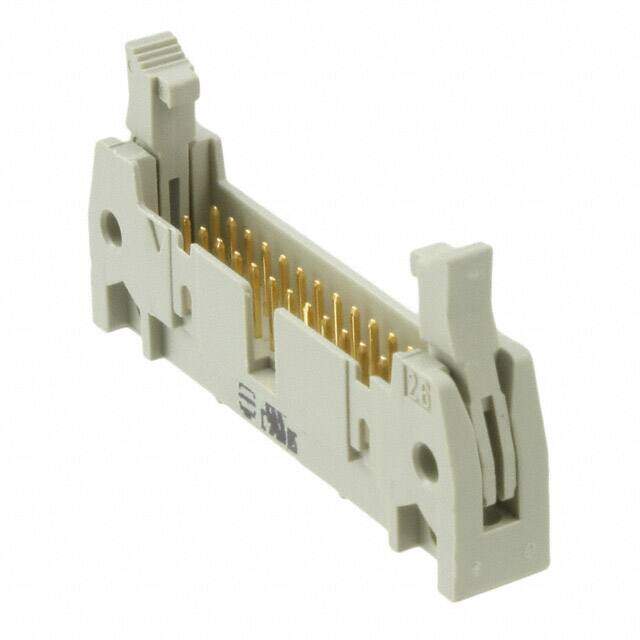

09185266903
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SEK ROHS3Compliant COMMERCIAL UL Connector Header UL94V-0 20mOhm -55C~125C 1A
PDF
/
Buying Options
Total Price: USD $2.86
Unit Price: USD $2.86
≥1 USD $2.86
≥10 USD $2.59512
≥100 USD $2.286592
≥500 USD $1.943603
≥1000 USD $1.657779
≥3000 USD $1.54345
Inventory: 174
Minimum: 1
-
+
Technical Details
Technical
Series SEK
Feature Keying Slot, Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Color Grey
Number of Rows 2
Additional Feature STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED
HTS Code 8536.69.40.40
Fastening Type Latch Lock/Eject Hooks, Long
Voltage - Rated DC 350V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Depth 25.75mm
Insulation Height 0.335 8.51mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Insulation Color Gray
Number of Conductors ONE
Reference Standard UL
Packaging Tray
Operating Temperature -55°C~125°C
Voltage - Rated AC 350V
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.335 inch
Contact Gender Male
UL Flammability Code 94V-0
Working Voltage 350V
Rated Current (Signal) 2A
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Number of Poles 26
Contact Current Rating 1A
Hole Diameter 900 μm
Physical
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
Dimensions
Length 52.6mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
