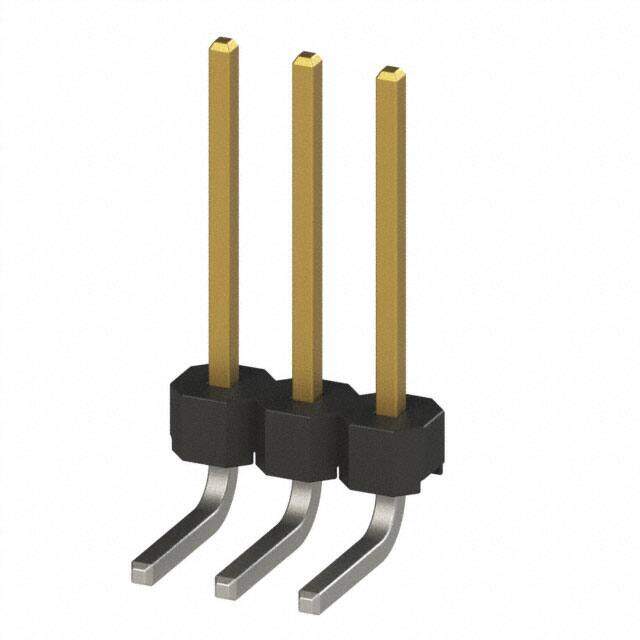

951103-7722-AR

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings 3P PIN STRP HDR 1R RA PTH 10U AU
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.4312
≥1 USD $0.4312
≥10 USD $0.374
≥100 USD $0.308264
≥500 USD $0.268083
≥1000 USD $0.221162
≥3000 USD $0.194357
Inventory: 394
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating Flash

Technical

Contact Length - Mating 0.305 7.75mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.079 2.00mm
Pitch 2.0066mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Color Black
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 951
Published 2008
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
