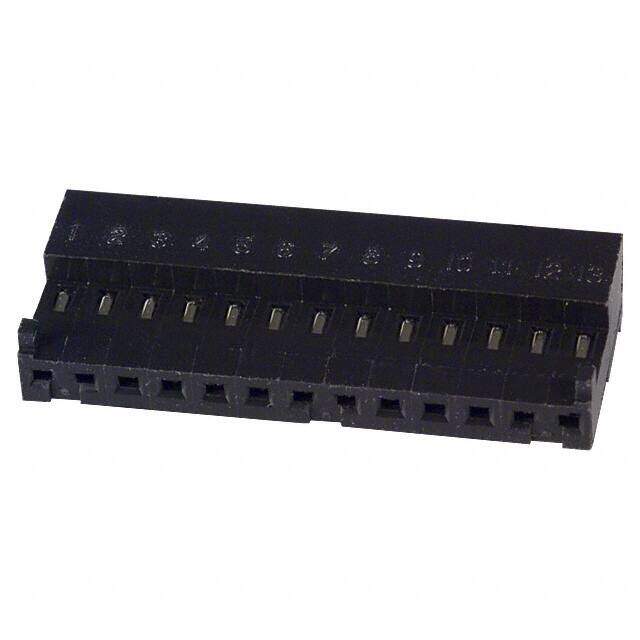

4-644313-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 13POS 26AWG MTA100
PDF
/
Inventory: 4173
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 80.0μin 2.03μm
Width 6.985mm
Length 33.02mm
Height 6.99mm
Technical
Mating Alignment With
Contact Retention With
Wire Type Discrete or Ribbon Cable
Insulation Diameter 1.52 mm
Mating Retention With
Circuit Application Signal
Contact Current Rating 5A
Sealable No
Cable Termination IDC
Wire/Cable Gauge 26 AWG
Wire/Cable Type Discrete
Max Voltage Rating (AC) 250V
ELV Compliant
Wire Gauge 26 AWG
Contact Resistance 6mOhm
Operating Supply Voltage 250V
Housing Color Black
Contact Gender Female
Number of Contacts 13
Lead Pitch 2.54mm
Shrouding No
Approval Agency CSA
Voltage - Rated AC 250V
Contact Finish Tin
Current Rating 5A
Depth 6.99mm
Orientation Right Angle
Pitch 0.100 2.54mm
Contact Type Female Socket
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 13
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Closed End
Series MTA-100
Published 2008
Packaging Bulk
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 16 Weeks
