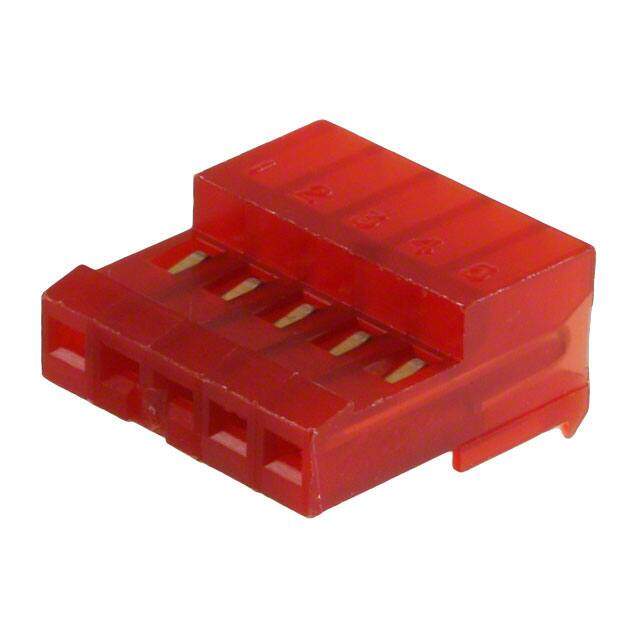

3-641190-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 5POS IDC 22AWG GOLD
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.3904
≥1 USD $1.3904
≥10 USD $1.23816
≥100 USD $1.232
≥500 USD $1.219504
≥1000 USD $1.11892
≥3000 USD $1.112602
Inventory: 1882
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Plating Tin, Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material Nylon
Underplate Material Nickel
Technical
Packaging Bulk
Published 2008
Series MTA-100
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 5
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Red
Number of Rows 1
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Right Angle
Depth 6.99mm
Current Rating 5A
Contact Finish Gold
Voltage - Rated AC 250V
Approval Agency CSA
Shrouding No
Number of Contacts 5
Contact Gender Female
Housing Color Red, White
Operating Supply Voltage 250V
Contact Resistance 6mOhm
Wire Gauge 22 AWG
ELV Compliant
Max Voltage Rating (AC) 250V
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 5A
Circuit Application Signal
Mating Retention With
Insulation Diameter 1.52 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Mating Alignment Without
Dimensions
Height 6.99mm
Length 12.7mm
Width 6.985mm
Contact Finish Thickness 15.0μin 0.38μm
Plating Thickness 380 nm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
