TSW-105-15-L-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

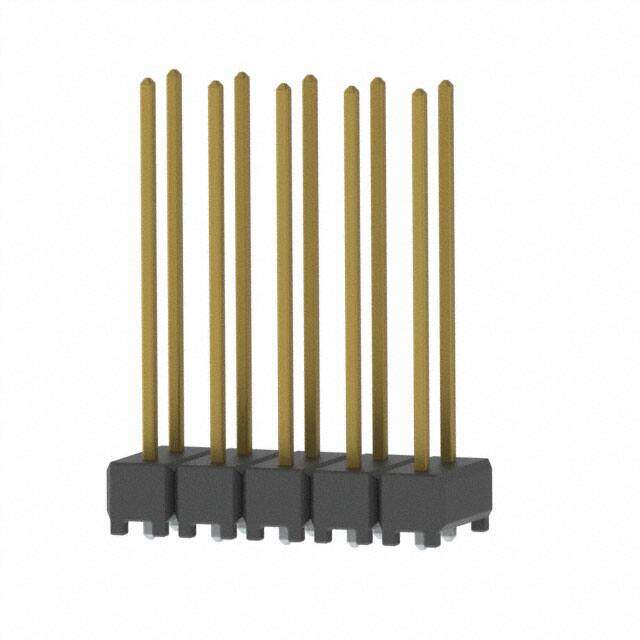

SAMTEC TSW-105-15-L-D Board-To-Board Connector, Vertical, TSW Series, 10 Contacts, Header, 2.54 mm, Through Hole, 2 Rows
PDF
/
Buying Options
Total Price: USD $0.93
Unit Price: USD $0.9328
≥1 USD $0.9328
≥10 USD $0.7656
≥100 USD $0.6336
≥500 USD $0.528
≥1000 USD $0.473
Inventory: 492
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Length 12.7mm
Technical
Max Current Rating 7.6A
Max Voltage Rating (AC) 550V
Overall Contact Length 0.730 18.54mm
UL Flammability Code 94V-0
Contact Length - Mating 0.520 13.21mm
Contact Finish - Post Tin
Lead Pitch 2.54mm
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Depth 5.08mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature E.L.P.
Gender Male
Number of Rows 2
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series TSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
