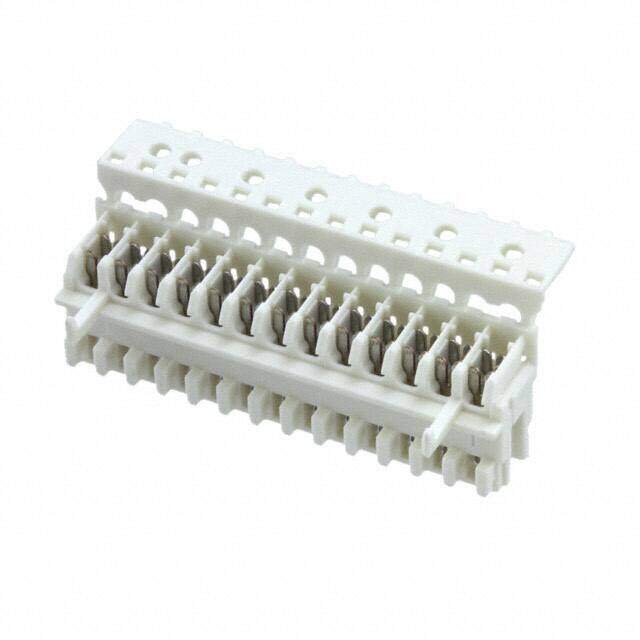

3-1534797-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 13POS IDC 22-24AWG TIN
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9944
≥1 USD $0.9944
≥10 USD $0.92752
≥100 USD $0.893376
≥500 USD $0.88462
≥1000 USD $0.798274
≥3000 USD $0.772402
Inventory: 3830
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
PCB Thickness 1.4986mm
Plating Thickness 6μm
Height 7.2898mm
Technical
Preloaded Yes
Wire Type Discrete
Insulation Diameter 1.6 mm
Circuit Application Signal
Contact Current Rating 2A
Cable Termination IDC
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 24 AWG
Wire/Cable Type Discrete
ELV Compliant
Wire Gauge 22-24 AWG
Operating Supply Voltage 50V
Housing Color Natural
Number of Contacts 13
Approval Agency UL
Contact Finish Tin
Current Rating 2A
Orientation Right Angle
Pitch 0.098 2.50mm
Contact Type Female Blade Socket
Number of Rows 1
Color Natural
Min Operating Temperature -40°C
Max Operating Temperature 110°C
Number of Positions 13
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mates to PCB
Series DuoPlug
Published 2002
Packaging Bulk
Physical
PCB Mounting Orientation Right Angle
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Plating Tin
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 12 Weeks
Alternative Model
