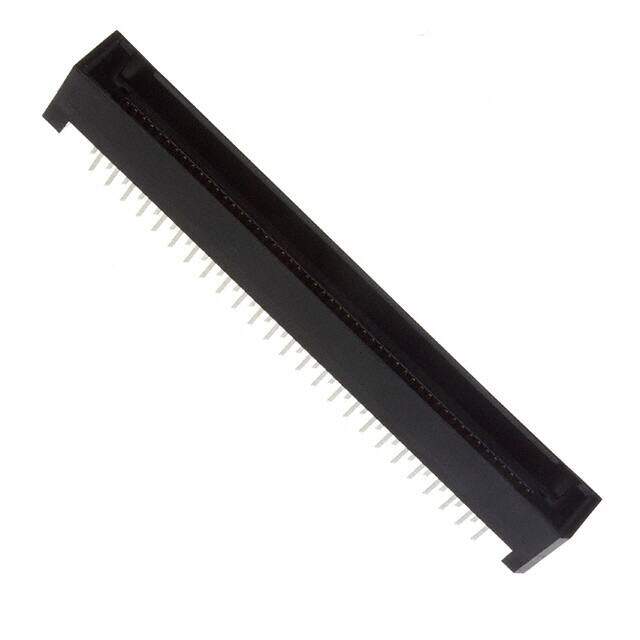

TX25-100P-8ST-E1E image
Favorite
TX25-100P-8ST-E1E image
Favorite

TX25-100P-8ST-E1E

JAE Electronics
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description CONN PLUG 1.27MM 100POS GOLD PCB
PDF
/
Inventory: 9998
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mounting Type Through Hole

Technical

Packaging Tray
Published 2003
Series TX25
Feature Board Lock
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Center Strip Contacts
Number of Positions 100
Number of Rows 2
Pitch 0.050 1.27mm
Contact Finish Gold

Dimensions

Contact Finish Thickness 3.94μin 0.10μm
Stack Height (Mating) 14mm 18mm 20mm

Compliance

RoHS Status RoHS Compliant
