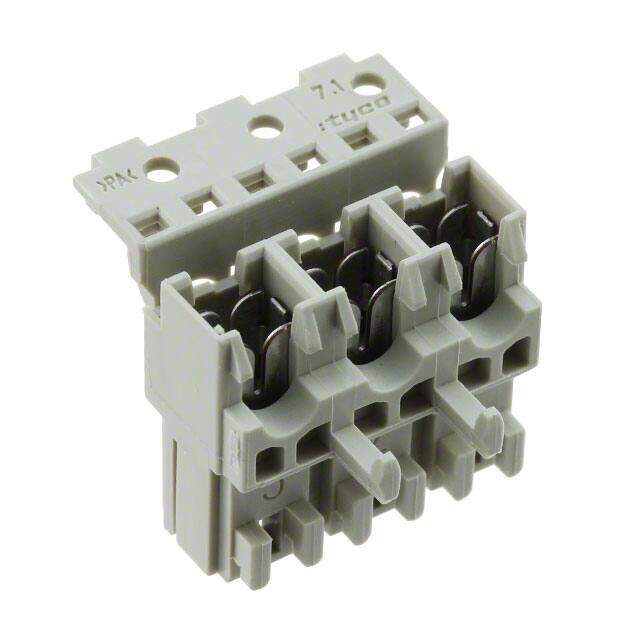

2-1394918-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 3POS IDC TIN
PDF
/
Inventory: 4627
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 13.97mm
Length 14.732mm
Technical
Mating Alignment With
Contact Retention With
Wire Type Discrete
Insulation Diameter 2.2 mm
Mating Retention With
Circuit Application Power
Sealable No
Cable Termination IDC
Wire/Cable Gauge 20 AWG
ELV Compliant
Operating Supply Voltage 250V
Number of Contacts 3
Contact Finish Tin
Current Rating 6A
Pitch 0.197 5.00mm
Contact Type Female Socket
Number of Rows 1
Color Gray
Number of Positions 3
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mates to PCB
Series DuoPlug
Published 2011
Packaging Tray
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line), Right Angle
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 16 Weeks
