0014567159
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

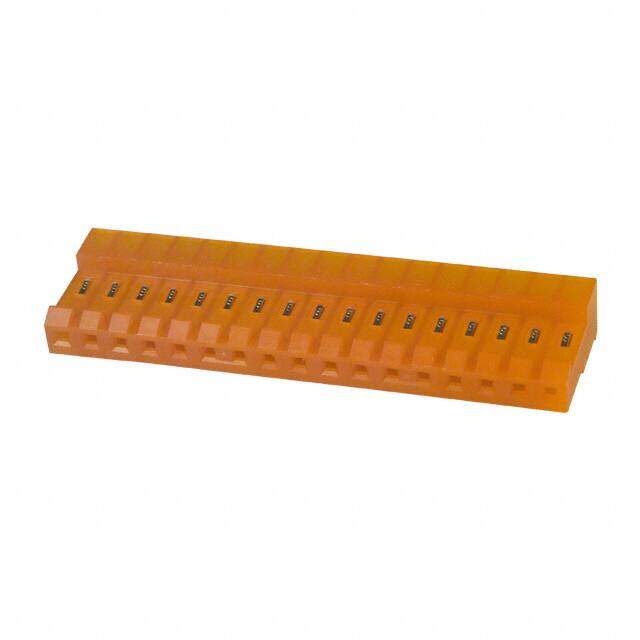

SL 70400 ROHS3Compliant Straight Female Receptacle Rectangular Connector 22AWG 15mOhm 105C 3A
PDF
/
Inventory: 2319
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Max Voltage Rating (AC) 250V
Wire Gauge 22 AWG
Contact Resistance 15mOhm
Contact Finish Gold
Current Rating 3A
Reach Compliance Code unknown
Depth 15.24mm
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Female Socket
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 15
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series SL 70400
Packaging Tube
Dimensions
Length 38.07mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
RoHS Status ROHS3 Compliant
Physical
Housing Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Bronze
Supply Chain
Factory Lead Time 5 Weeks
