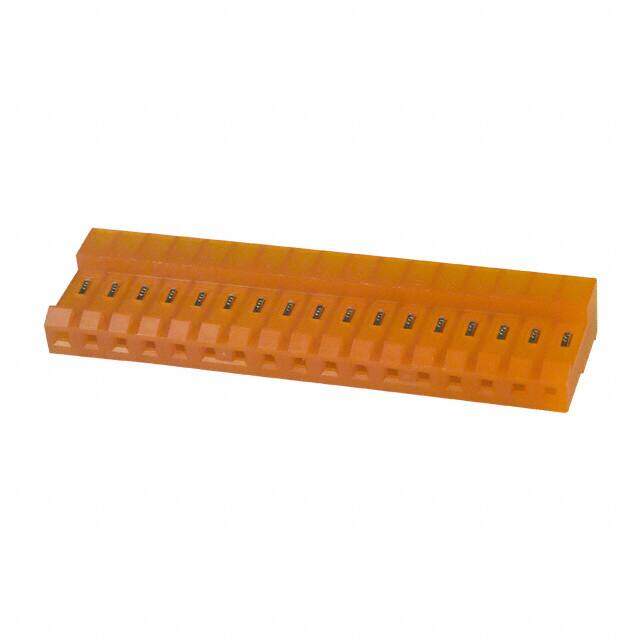

1-640426-7 image
Favorite
1-640426-7 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description CONN RECEPT 17POS 18AWG MTA156
PDF
/
Inventory: 7572
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status Non-RoHS Compliant

Dimensions

Length - Termination 0.48 inch
Contact Finish Thickness 80.0μin 2.03μm

Technical

Wire Type Discrete
Cable Termination IDC
Wire/Cable Gauge 18 AWG
Termination Type IDC
Max Voltage Rating (AC) 600V
ELV Non-Compliant
Body/Shell Style PLUG
Insulation Resistance 5000000Ohm
Wire Gauge 18 AWG
Contact Resistance 3mOhm
Body Depth 0.355 inch
Contact Gender Female
Body Breadth 0.725 inch
Shrouding No
Body Length or Diameter 2.652 inch
Reliability COMMERCIAL
Voltage - Rated AC 600V
Contact Finish Tin
Reference Standard UL, CSA
Current Rating 7A
Orientation Right Angle
Total Number of Contacts 17
Pitch 0.156 3.96mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Voltage - Rated 600V
Number of Rows 1
Color Orange
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 17
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Closed End
Series MTA-156
Published 2004
Packaging Bulk

Physical

Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material PHOSPHOR BRONZE
