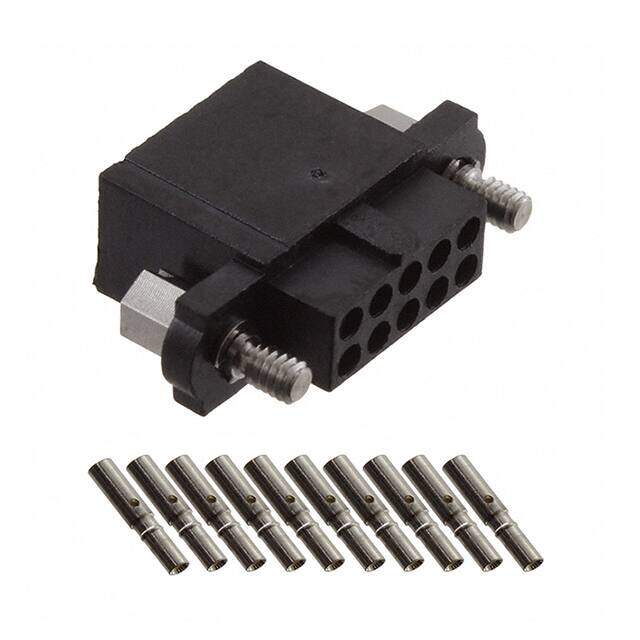

M80-4651042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 10POS CRIMP 22AWG GOLD
PDF
/
Buying Options
Total Price: USD $9.77
Unit Price: USD $9.768
≥1 USD $9.768
≥10 USD $8.78856
≥100 USD $8.279392
≥500 USD $8.06696
≥1000 USD $7.854704
≥3000 USD $7.005574
Inventory: 115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material BERYLLIUM COPPER
Mounting Type Free Hanging (In-Line)
Insulation Material GLASS FILLED POLYPHENYLENE SULPHIDE
Technical
Packaging Bulk
Series Datamate J-Tek
JESD-609 Code e3
Feature Jackscrews, Polarizing Key, Potting Wall
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 10
Color Black
Number of Rows 2
Additional Feature POLARISED
HTS Code 8536.69.40.40
Fastening Type Screw Lock
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 10
Reach Compliance Code not_compliant
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.787 inch
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Body Depth 0.494 inch
Rated Current (Signal) 3A
Wire Gauge 22 AWG
Row Spacing 0.079 (2.00mm)
Body/Shell Style PLUG
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Cable Termination Crimp
Wire Type Discrete
Contact Design LOOSE
Dimensions
Contact Finish Thickness 11.8μin 0.30μm
Compliance
RoHS Status ROHS3 Compliant
