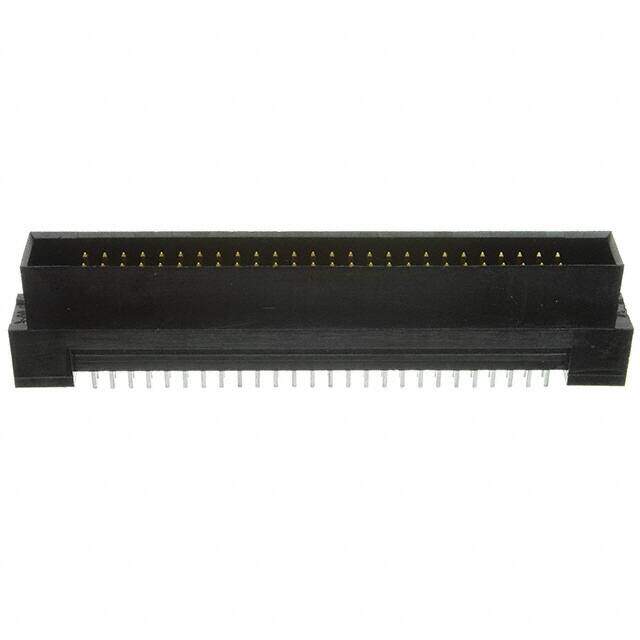

102871-1
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 52POS STR .100 GOLD
PDF
/
Inventory: 3762
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Housing Material Nylon
Technical
Operating Temperature -65°C~125°C
Packaging Tray
Published 2007
Series AMPMODU Mod II
JESD-609 Code e0
Feature Mounting Flange
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 52
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Vertical
Depth 8.84mm
Insulation Height 0.785 19.94mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.085 2.16mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.275 6.99mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.348 inch
Housing Color Black, Brown
Lead Length 2.15mm
Overall Contact Length 0.810 20.57mm
Insulation Resistance 5GOhm
Mating Contact Pitch 0.1 inch
ELV Non-Compliant
Contact Current Rating 3A
Mating Post Length 3.81mm
Stackable No
Dimensions
Height 19.939mm
Length 84.33mm
Plating Thickness 15μin
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Length - Tail 2.159mm
Stack Height 19.94mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
