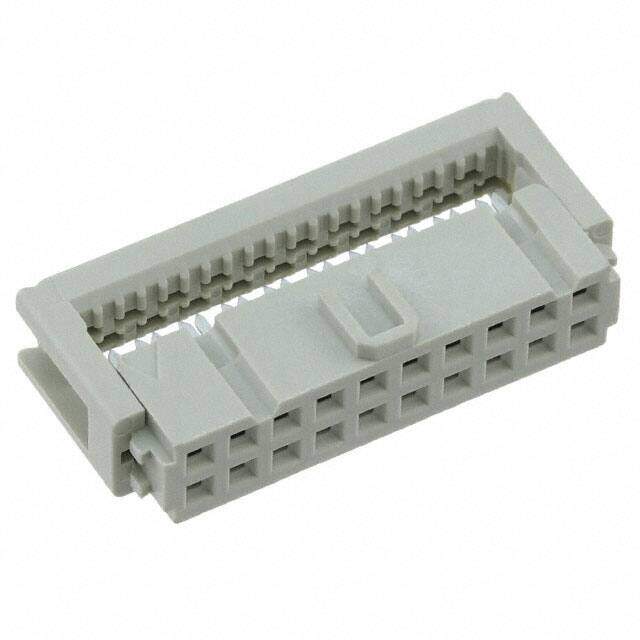

0918520780358U
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
SEK ROHS3Compliant COMMERCIAL UL Receptacle Rectangular Connector 50Cycles 28AWG -55C 2A
PDF
/
Inventory: 9612
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Cable Termination IDC
Durability 50 Cycles
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Polarization Key CENTER
Termination Type IDC
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1000000000Ohm
Wire Gauge 26-28 AWG
Rated Current (Signal) 2A
Operating Temperature (Min) -55°C
Body Length or Diameter 1.181 inch
Reliability COMMERCIAL
Reference Standard UL
Total Number of Contacts 20
Pitch 0.100 2.54mm
Contact Type Female Socket
Contact Finish - Mating AU
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Number of Positions 20
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series SEK
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
