M80-4103442
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

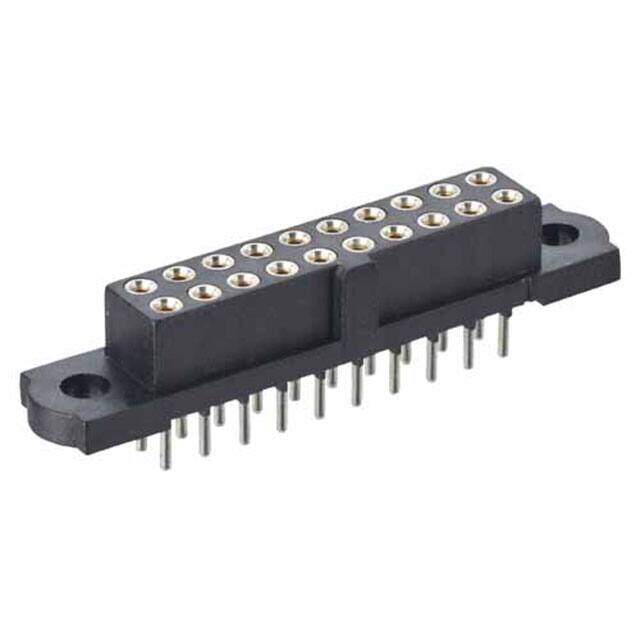

Headers & Wire Housings 17+17 POS FEM WO J/S 3mm TAIL TIN
PDF
/
Buying Options
Total Price: USD $11.09
Unit Price: USD $11.088
≥1 USD $11.088
≥10 USD $9.82887
≥100 USD $8.568613
≥500 USD $7.308558
≥1000 USD $6.703708
Inventory: 185
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Housing Material Polyphenylene
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2005
Series Datamate J-Tek
JESD-609 Code e3
Feature Mating Flange, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 34
Applications Automotive, General Purpose, Military
Number of Rows 2
Additional Feature PANEL MOUNTABLE
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 120V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Orientation Straight
Depth 5.55mm
Insulation Height 0.205 5.20mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Lead Pitch 2mm
Contact Finish - Post Tin
Contact Gender Female
UL Flammability Code 94V-0
Housing Color Black
Contact Resistance 25mOhm
Insulation Resistance 100MOhm
Mating Contact Pitch 0.079 inch
Max Voltage Rating (AC) 120V
Max Current Rating 3A
Durability 500 Cycles
Dimensions
Height 5.2mm
Length 44mm
Width 5.55mm
Plating Thickness 11μin
Contact Finish Thickness - Mating 12.0μin 0.30μm
Contact Finish Thickness - Post 137.8μin 3.50μm
Stack Height (Mating) 7.3mm 7.55mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
