09185106803
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

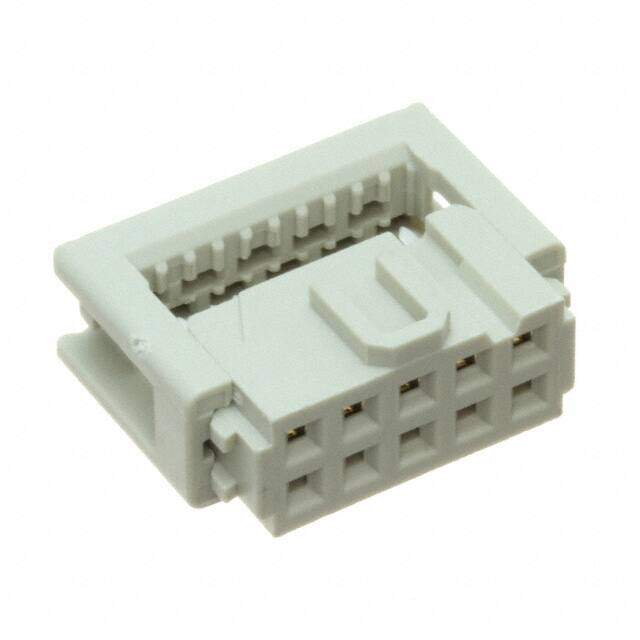

SEK/IDC FEMALE, 10PIN, OPEN END,
PDF
/
Buying Options
Total Price: USD $1.77
Unit Price: USD $1.7688
≥1 USD $1.7688
≥10 USD $1.53824
≥100 USD $1.374824
≥500 USD $1.145707
≥1000 USD $0.982036
≥3000 USD $0.870734
Inventory: 142
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Length 17.3mm
Technical
Contact Design PREASSEM CONN
Mating Contact Row Spacing 0.1 inch
Contact Pattern RECTANGULAR
Number of Poles 10
Polarization Key CENTER
Body/Shell Style PLUG
Contact Style SQ PIN-SKT
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Reliability COMMERCIAL
Reference Standard UL
Current Rating 2A
Depth 7.2mm
Orientation Right Angle
Total Number of Contacts 10
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Gender Receptacle
Number of Rows 2
Connector Type BOARD EURO CONNECTOR
Termination IDT
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Physical
Insulation Material PBTP 30% FIBRE ENHANCED
Mount Cable
Contact Plating Gold
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
