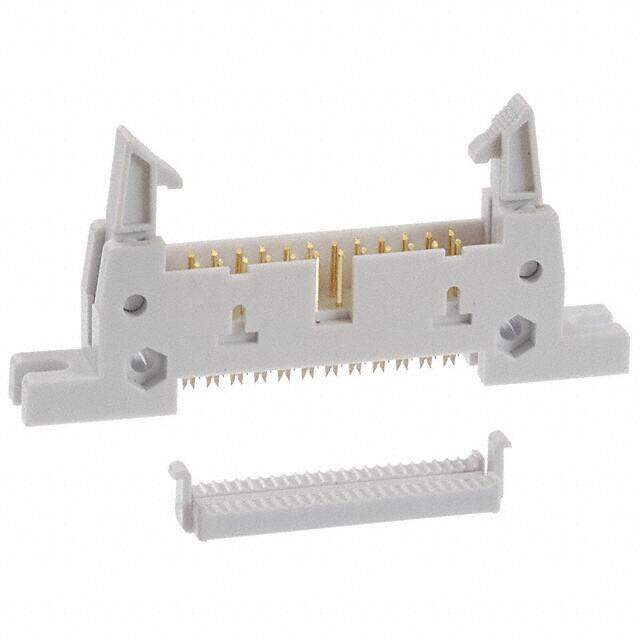

AWH24G-E232-IDC-R
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN PIN IDC 24POS W/ FLANGE
PDF
/
Inventory: 9219
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Panel
Mounting Type Panel Mount
Housing Material Plastic
Technical
Packaging Tray
Published 2006
Feature Feed Through
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Header
Number of Positions 24
Color Gray
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks, Long
Contact Type Male Pin
Pitch 0.100 2.54mm
Total Number of Contacts 24
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Housing Color Grey
Body Depth 0.756 inch
Rated Current (Signal) 3A
Insulation Resistance 5000000000Ohm
Row Spacing 0.100 (2.54mm)
Termination Type IDC
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1000VAC V
Wire/Cable Type Ribbon
Cable Termination IDC
Wire Type Ribbon Cable
Contact Design PREASSEM CONN
Dimensions
Height 19.1mm
Length 65.1mm
Width 8.2mm
Plating Thickness 100μin
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
