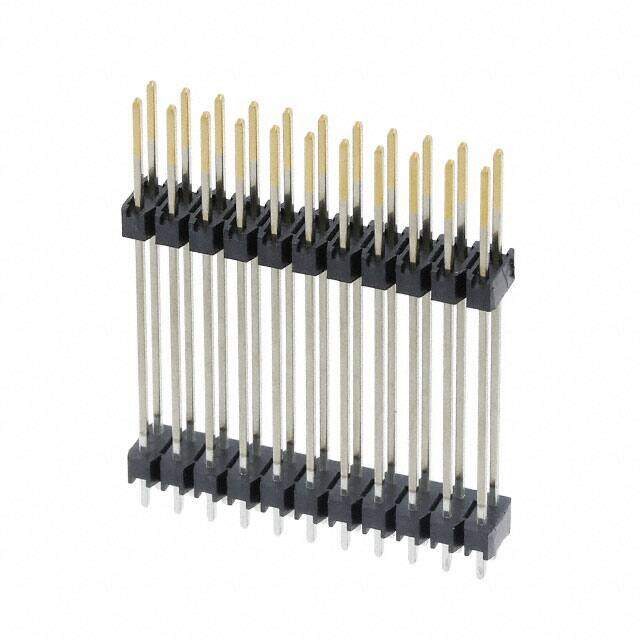

6-146506-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Headers & Wire Housings 22 MODII HDR DRST UNSHRD STKG
PDF
/
Inventory: 2379
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Housing Material Thermoplastic
PCB Mounting Orientation Vertical
PCB Mount Retention Without
Technical
Packaging Bulk
Published 2011
Series AMPMODU Mod II
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Pin, Plug
Number of Positions 22
Max Operating Temperature 125°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
Pitch 0.100 2.54mm
Orientation Vertical
Current Rating 3A
Approval Agency CSA
Number of Contacts 22
Housing Color Black
Lead Length 33.78mm
Contact Finish - Post (Mating) Gold
Insulation Resistance 5GOhm
Row Spacing 0.100 (2.54mm)
ELV Compliant
Plating Gold
Contact Current Rating 3A
Mating Post Length 8.38mm
Stackable Yes
Dimensions
Length 33.782mm
Length - Stack Height 0.900 22.860mm
Contact Finish Thickness - Mating 381 nm
Length - Overall Pin 1.330 33.782mm
Length - Post (Mating) 0.330 8.382mm
Contact Finish Thickness - Post (Mating) 15.0μin 0.38μm
Length - Tail 0.100 2.540mm
Stack Height 22.86mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
