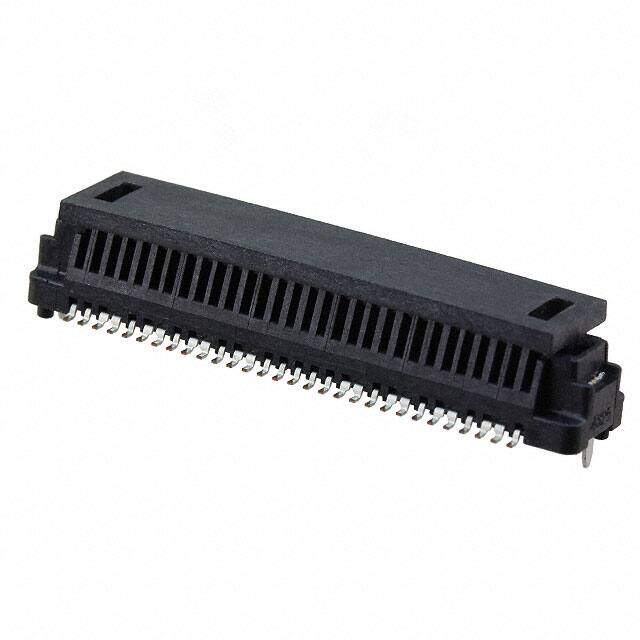

1714500106
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN RCPT 60POS SMD GOLD
PDF
/
Buying Options
Total Price: USD $6.34
Unit Price: USD $6.3448
≥1 USD $6.3448
Inventory: 182
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material COPPER ALLOY
Mounting Type Surface Mount
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Mounting Option 1 LOCKING
Technical
Packaging Tape & Reel (TR)
Published 2014
Series SpeedStack 171450
Feature Board Guide
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 60
Number of Rows 2
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Pitch 0.031 0.80mm
Total Number of Contacts 16
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 1.087 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 105°C
Contact Gender FEMALE
Operating Temperature (Min) -40°C
Body Depth 0.177 inch
Rated Current (Signal) 0.8A
Contact Resistance 10mOhm
Insulation Resistance 1000000000Ohm
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Contact Pattern RECTANGULAR
Insulator Color BLACK
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Height Above Board 0.161 4.10mm
Stack Height (Mating) 5mm 6mm 7mm 8mm
Compliance
RoHS Status ROHS3 Compliant
