22-28-4246
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 24POS .100 VERT GOLD
PDF
/
Inventory: 7323
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Through Hole
Housing Material Nylon
Technical
Packaging Bulk
Published 2004
Pbfree Code yes
Termination Solder
ECCN Code EAR99
Connector Type Male Pin
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 250V
Additional Feature SURFACE-MOUNT COMPATIBLE
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Current Rating 4A
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 2.4 inch
Number Of PCB Rows 1
Number of Contacts 24
Contact Length - Mating 6.096mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.098 inch
UL Flammability Code 94V-0
Body Depth 0.09 inch
Contact Style SQ PIN-SKT
Body/Shell Style RECEPTACLE
Contact Pattern RECTANGULAR
Insertion Force-Max 4.8928 N
Withdrawl Force-Min .556 N
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free

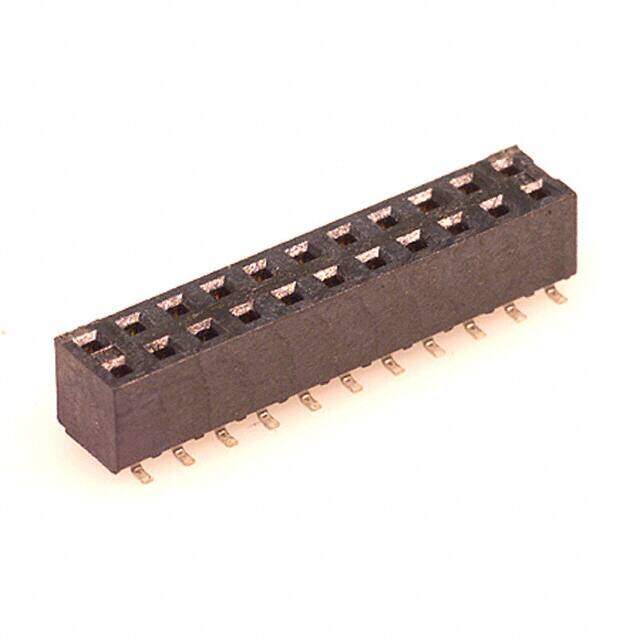

Alternative Model
