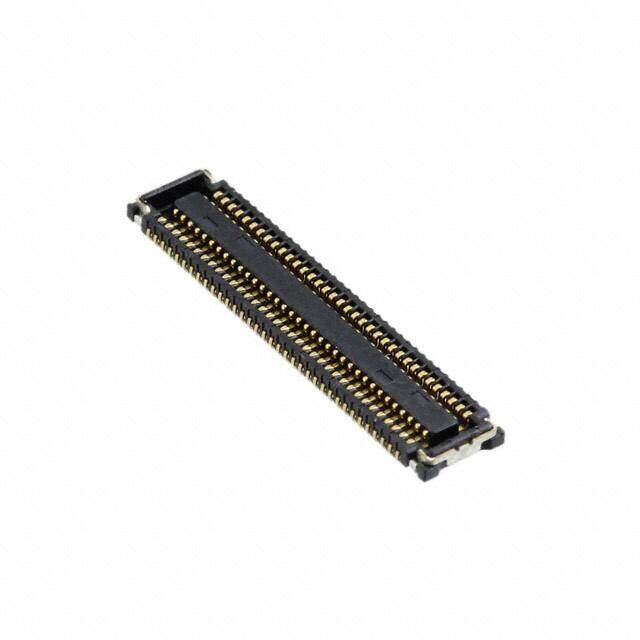

WP3-S070VA1-R500
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Board to Board & Mezzanine Connectors 70P SKT B2B .4mm PCH 1.0mm HEIGHT
PDF
/
Inventory: 7911
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Stack Height 1mm
Stack Height (Mating) 1mm
Height Above Board 0.039 1.00mm
Contact Finish Thickness 3.94μin 0.10μm
Technical
Insulation Resistance 100MOhm
Contact Finish Gold
Current Rating 400mA
Pitch 0.016 0.40mm
Voltage - Rated 50V
Number of Rows 2
Min Operating Temperature -45°C
Max Operating Temperature 85°C
Number of Positions 70
Connector Type Receptacle, Center Strip Contacts
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Solder Retention
Series WP3
Published 2011
Packaging Tape & Reel (TR)
Physical
Housing Material Plastic
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
