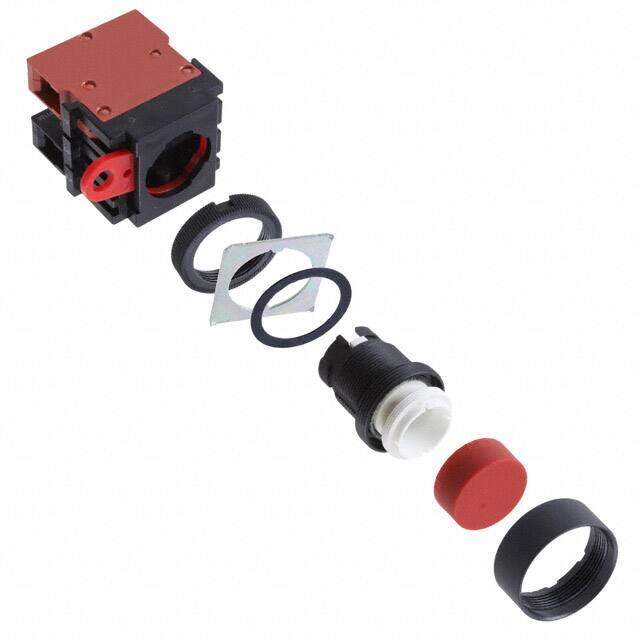

A22-TR-11M
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST 10A 110V
PDF
/
Buying Options
Total Price: USD $58.2
Unit Price: USD $58.199544
≥1 USD $58.199544
≥200 USD $23.222575
≥500 USD $22.446651
≥1000 USD $22.063285
Inventory: 8727
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
RoHS Status RoHS Compliant
Dimensions
Body Height 54.7mm
Technical
Contact Current Rating 10mA
Mechanical Life 5,000,000 Cycles
Max Voltage Rating (DC) 380V
Throw Configuration DPST, SPST
Number of Poles 1
Electrical Life 500,000 Cycles
Max Current Rating 10A
Max Voltage Rating (AC) 440V
Color - Actuator/Cap Red
Panel Cutout Dimensions Circular - 22.30mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Round, Button
Body Length or Diameter 36mm
Approval Agency CE, UL
Voltage - Rated AC 110V
Termination Style Screw Terminal
Current Rating 10A
Reach Compliance Code unknown
Depth 30mm
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Orientation Vertical
Current Rating (Amps) 10A AC/DC
Voltage - Rated DC 24V
HTS Code 8536.50.70.00
Additional Feature Non-lighted (Round Type)
Type Standard
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series A22
Published 1998
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Mounting Type Panel Mount, Front
Mount Brackets, Front, Panel
