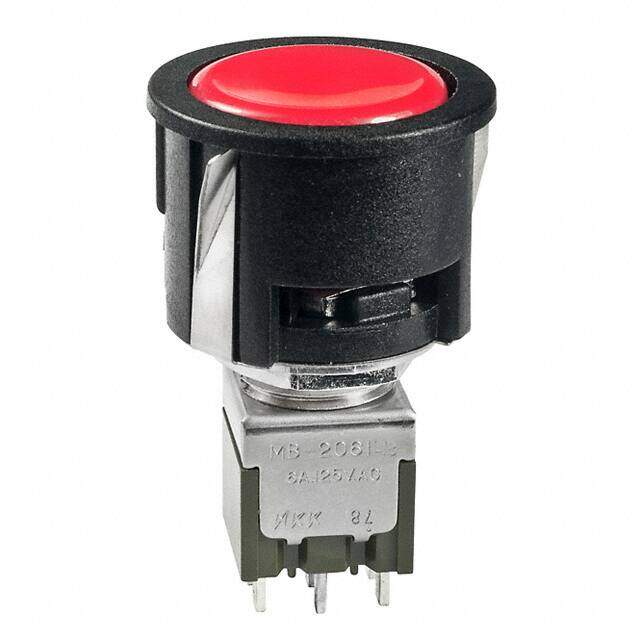

MB2061SB1W01-6C-A
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 6A 125V
PDF
/
Inventory: 914
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Nickel
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series MB2000
Feature Epoxy Sealed Terminals
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Orientation Vertical
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 23.30mm Dia
Color - Actuator/Cap Red
Electrical Life 25,000 Cycles
Throw Configuration DPDT
Mechanical Life 100,000 Cycles
Contact Current Rating 6A
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
