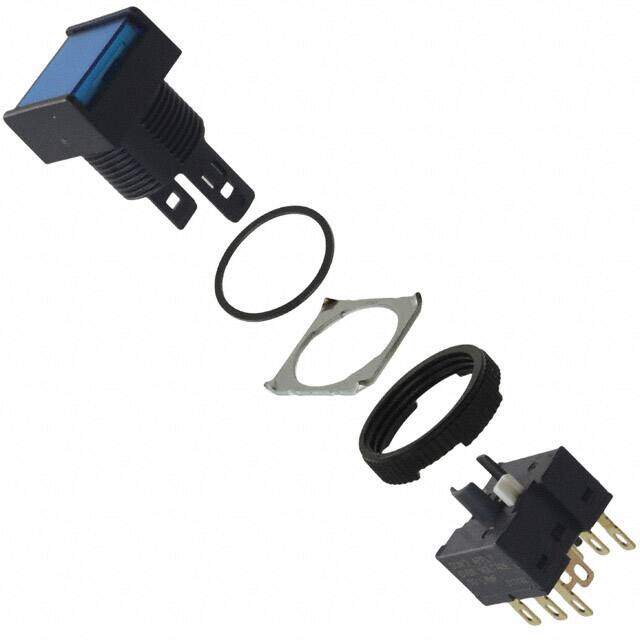

A165L-AAA-24D-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $40.23
Unit Price: USD $40.2336
≥1 USD $40.2336
≥10 USD $36.6168
≥100 USD $31.294736
Inventory: 55
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -10°C~55°C
Packaging Bulk
Published 2001
Series A16
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Max Operating Temperature 55°C
Min Operating Temperature -10°C
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC
Orientation Vertical
Ingress Protection IP66 - Dust Tight, Oil and Water Resistant
Current Rating 5A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Square, Button
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 16.00mm Dia
Color - Actuator/Cap Blue
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Blue
Electrical Life 100,000 Cycles
Throw Configuration SPDT
Mechanical Life 200,000 Cycles
Contact Current Rating 10mA
Illumination Type LED
Illumination Color Blue
Dimensions
Length 18mm
Width 18mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
