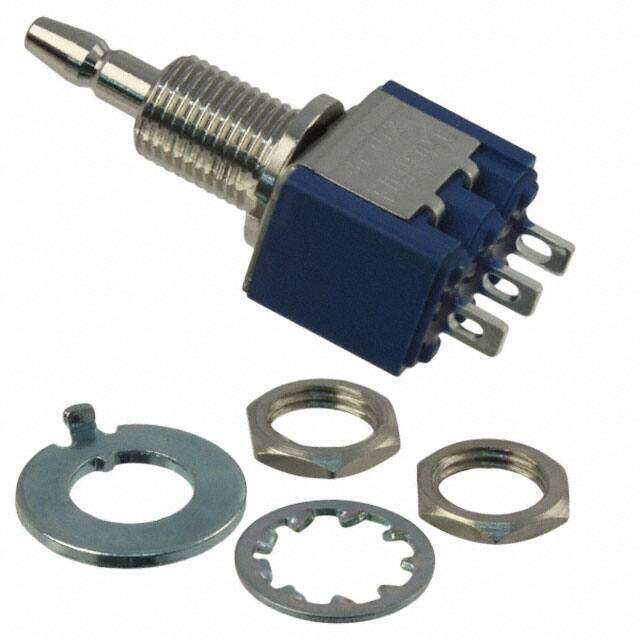

8R1021-N-Z image
Favorite
8R1021-N-Z image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $7.41
Unit Price: USD $7.4096
≥1 USD $7.4096
≥10 USD $6.65544
≥100 USD $6.34832
≥500 USD $6.075168
≥1000 USD $5.836248
≥3000 USD $5.52904
Inventory: 667
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Actuator Length 0.413 inch
Length - Termination 0.138 inch
Body Height 7.493mm

Technical

Bushing Diameter 0.25 inch
Bushing Length 0.315 inch
Contact Function ON-(ON)
PCB Hole Count 6
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Insulation Resistance 1000000000Ohm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Body Breadth 8.001 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Reach Compliance Code unknown
Current Rating (Amps) 3A AC
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 8R-N
Published 2010
Packaging Bulk
Operating Temperature -20°C~85°C

Physical

Mounting Type Panel Mount, Rear
Mount Panel

Supply Chain

Factory Lead Time 9 Weeks
