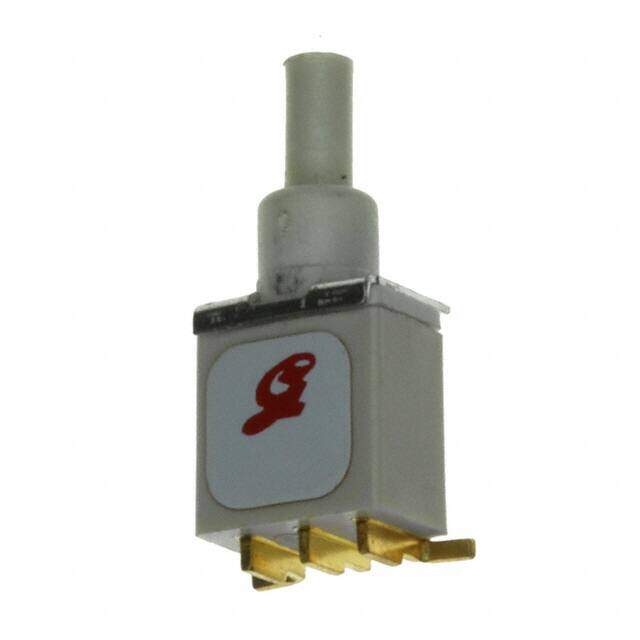

38BC-4-H-3-S image
Favorite
38BC-4-H-3-S image
Favorite

38BC-4-H-3-S

Grayhill Inc.
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Inventory: 4944
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Actuator Length 5.46mm
Body Height 5.69mm
Length 10.41mm

Technical

Contact Voltage Rating (DC) 20V
Contact Voltage Rating (AC) 20V
Contact Current(AC)-Max 0.02A
Contact Current Rating 400mA
Mechanical Life 80,000 Cycles
Max Voltage Rating (DC) 20V
Number of Poles 1
Electrical Life 80,000 Cycles
Max Voltage Rating (AC) 20V
Contact Current(DC)-Max 0.02A
Color - Actuator/Cap White
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style Gull Wing
Depth 5.08mm
Orientation Right Angle
Packing Method TAPE AND REEL
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Type Standard
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed - Fully
JESD-609 Code e4
Series 38BC
Published 2005
Packaging Bulk
Operating Temperature -30°C~85°C

Physical

Actuator Material Thermoplastic
Mounting Type Surface Mount, Right Angle
Mount PCB, Surface Mount
Contact Material Gold

Supply Chain

Factory Lead Time 18 Weeks
