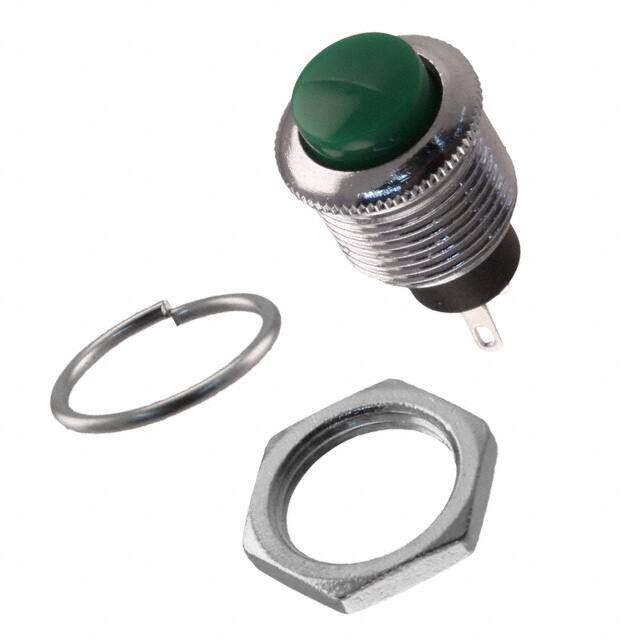

RP3502MAGRN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 3A 120V
PDF
/
Buying Options
Total Price: USD $3.19
Unit Price: USD $3.1944
≥1 USD $3.1944
≥10 USD $2.582976
≥100 USD $2.46312
≥500 USD $2.050391
Inventory: 1070
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Insulation Material BRASS
Technical
Operating Temperature -20°C~65°C
Packaging Bulk
Published 2002
Series RP3502
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Current Rating (Amps) 3A AC
Orientation Straight
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 12.70mm Dia
Contact Resistance 50mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap Green
Max Voltage Rating (AC) 250V
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 6,000 Cycles
Throw Configuration SPST
Mechanical Life 6,000 Cycles
Contact Current Rating 3A
Illumination Type Illuminated
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@120VAC
Contact Function OFF-(ON)
Dimensions
Diameter 14mm
Body Height 16.9926mm
Length - Termination 0.228 inch
Actuator Length 3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
