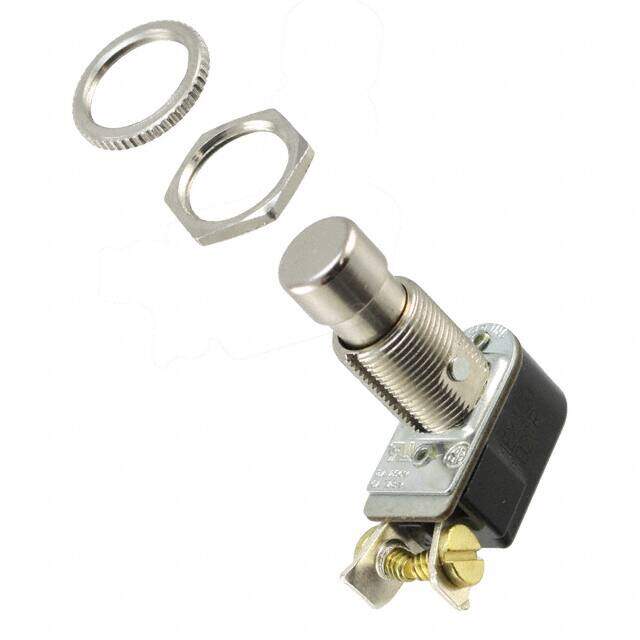

110-SP
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 6A 125V
PDF
/
Buying Options
Total Price: USD $16.36
Unit Price: USD $16.3592
≥1 USD $16.3592
≥10 USD $14.6696
≥100 USD $14.025088
≥500 USD $13.299616
≥1000 USD $12.815968
≥3000 USD $12.009923
Inventory: 538
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Actuator Length 11.09mm
Width 13.3mm
Length 30mm
Technical
Contact Voltage Rating (AC) 250V
Operating Force-Max 35.59 N
Actuator Diameter 10.3124 mm
Hole Diameter 12.7 mm
Contact Current(AC)-Max 6A
Contact Current Rating 3A
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 250V
Throw Configuration SP, SPST
Number of Poles 1
Electrical Life 25,000 Cycles
Max Voltage Rating (AC) 250V
Contact Current(DC)-Max 6A
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 12.70mm Dia
Switch Function Off-On
Circuit SPST
Actuator Type Round, Button
Approval Agency CSA, UL
Voltage - Rated AC 125V
Termination Style Screw Terminal
Current Rating 6A
Orientation Straight
Current Rating (Amps) 6A AC
HTS Code 8536.50.90.35
Voltage - Rated 250V
Number of Positions 2
Type Standard
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series 110
Published 2003
Packaging Bulk
Operating Temperature 0°C~85°C
Physical
Housing Material Resin
Package / Case Metal
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Nickel
Supply Chain
Factory Lead Time 6 Weeks
