PV8H2Y0SSG
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

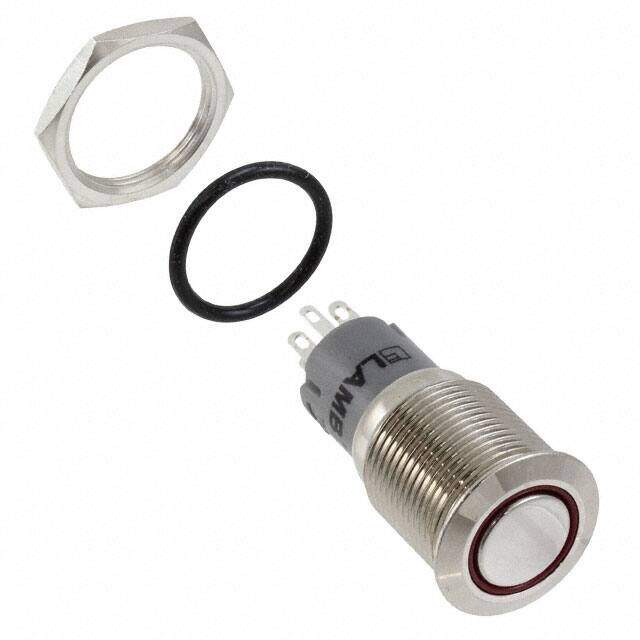

Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Inventory: 2231
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.15 inch
Technical
Contact (DC) Max Rating R Load 0.02A@12VDC
Hole Diameter 22 mm
Illumination Color Green
Illumination Type LED
Mechanical Life 1,000,000 Cycles
Throw Configuration DPDT, DPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Contact Voltage(DC)-Max 12V
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 25.00mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Round, Button
Body Length or Diameter 16.9926mm
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 2A DC
Voltage - Rated DC 36V
Terminal Finish GOLD/NICKEL
Type Anti-Vandal
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV8, LAMB
Published 2011
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
End Contact Plating GOLD
Terminal Material BRASS
Center Contact Plating GOLD
Housing Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Bushing, Front, Panel
