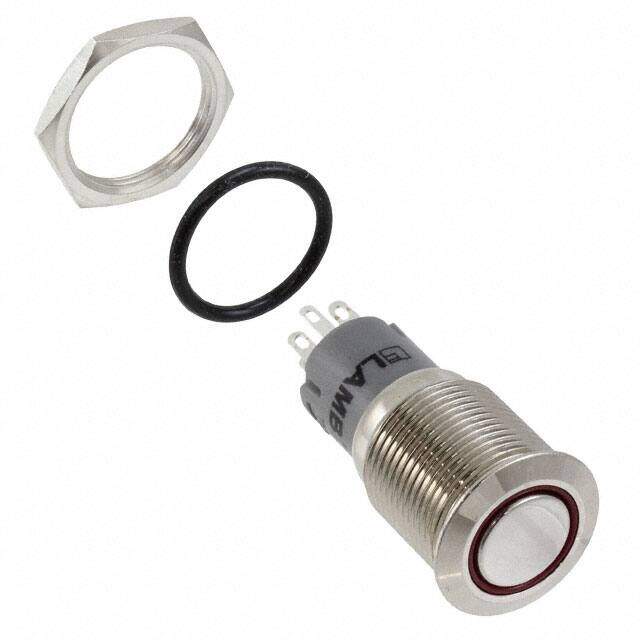

PV3F2H0NN-314
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
PDF
/
Buying Options
Total Price: USD $15.13
Unit Price: USD $15.1272
≥1 USD $15.1272
≥10 USD $13.56344
≥100 USD $12.29668
≥500 USD $11.84964
≥1000 USD $11.104342
≥3000 USD $10.284578
Inventory: 37
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.059 inch
Length - Termination 0.236 inch
Body Height 8.9154mm
Technical
Actuator Finish NICKEL
Bushing Length 0.791 inch
Contact Function ON-(ON)
Contact (DC) Max Rating R Load 2A@48VDC
Hole Diameter 16 mm
Illumination Color Blue
Illumination Type Illuminated, LED
Mechanical Life 200,000 Cycles
Throw Configuration DPDT, DPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 12VDC
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button, Flush
Termination Style Solder Lug
Current Rating 2A
Ingress Protection IP40
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Additional Feature 12V, RING STYLE, RED LENS
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV3, LAMB
Published 2011
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Center Contact Material PHOSPHOR BRONZE
Housing Material Brass
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 9 Weeks
