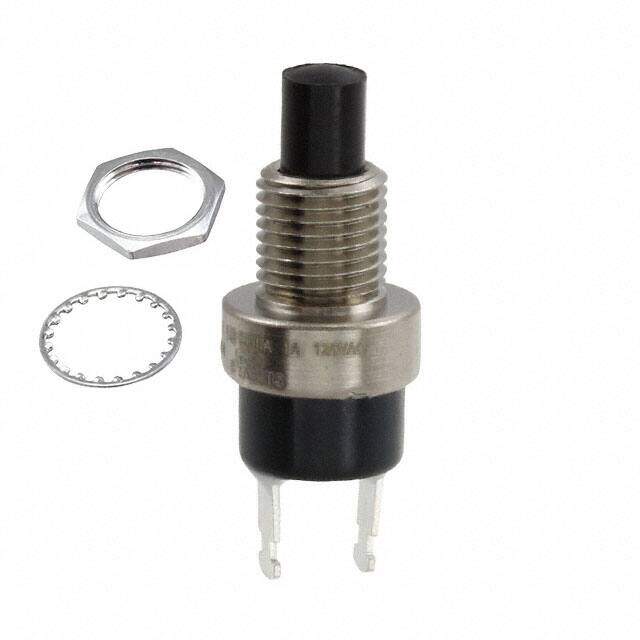

8534SZQE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON Mom SPST Round Plunger 1A 120VAC 28VDC Momentary Contact Solder Lug Panel Mount
PDF
/
Buying Options
Total Price: USD $4.91
Unit Price: USD $4.911559
≥1 USD $4.911559
≥200 USD $1.901079
≥500 USD $1.834121
≥1000 USD $1.801299
Inventory: 1347
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 5.33mm
Length 9.53mm
Technical
Max Voltage Rating (DC) 28V
Throw Configuration SPST
Electrical Life 250,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 120V
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round, Plunger
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 1A
Depth 9.53mm
Orientation Straight
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 8500
Published 2010
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Phenolic, Polyester
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Bushing, Panel
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
