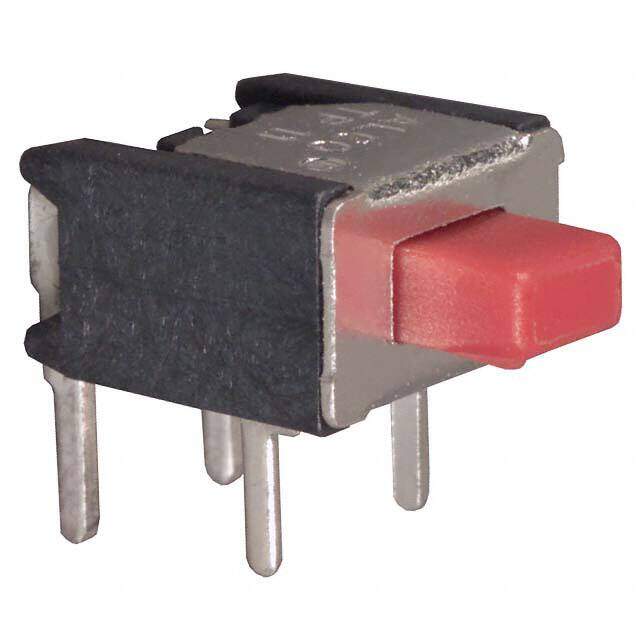

TP11CGRA204
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Inventory: 3349
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Actuator Length 3.28mm
Technical
Operating Force 3.92 N
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 20V
ELV Compliant
Color - Actuator/Cap Red
Contact Resistance 20mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Rectangular, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Current Rating 400mA
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Min Operating Temperature -30°C
Max Operating Temperature 65°C
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series TP
Published 2010
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
Actuator Material Nylon
Housing Material Polymer
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
