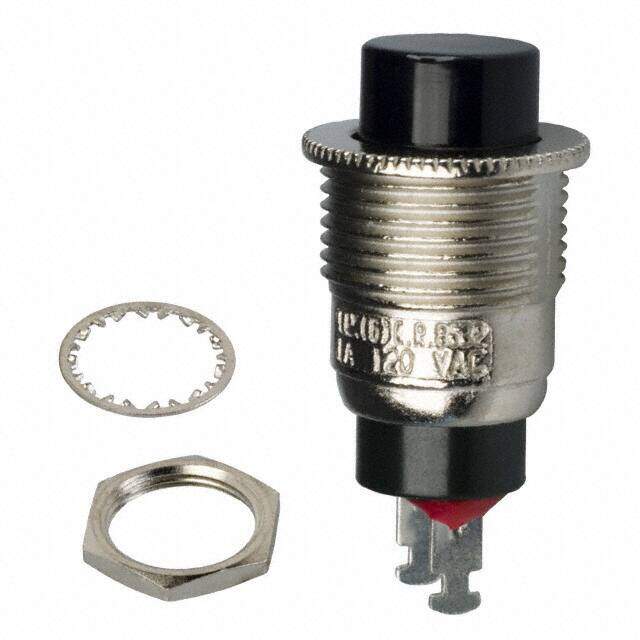

8532T1ZQE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 1A 120V
PDF
/
Buying Options
Total Price: USD $8.1
Unit Price: USD $8.096
≥1 USD $8.096
≥10 USD $7.29256
≥100 USD $6.987552
≥500 USD $6.64378
≥1000 USD $6.376594
≥3000 USD $5.99471
Inventory: 168
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Body Material Glass, Phenolic
Actuator Material Glass, Phenolic, Polyester
Technical
Operating Temperature -30°C~65°C
Packaging Tray
Published 2010
Series 8500
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Number of Positions 2
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 13.46mm
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 11.91mm Dia
Contact Resistance 30mOhm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 250,000 Cycles
Number of Poles 1
Throw Configuration SPST
Max Voltage Rating (DC) 28V
Contact Current Rating 1A
Dimensions
Diameter 9.52mm
Length 13.46mm
Actuator Length 3.73mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
