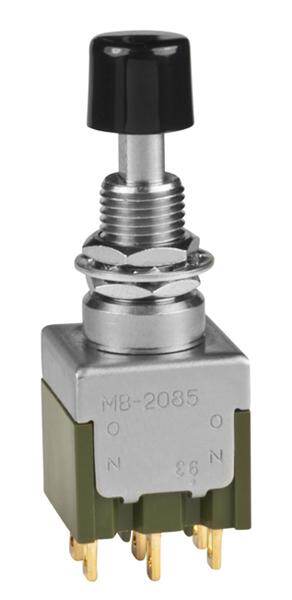

MB2085SS1G01-BA
RoHS
RoHS compliant
RoHS compliantPackage 315
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON-ON .335BSHG SLDR LUG .315 BLK CAP
PDF
/
Inventory: 7852
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Package / Case 315
Housing Material Resin
Center Contact Material COPPER
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series MB2000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Reach Compliance Code not_compliant
Termination Style Solder Lug
Voltage - Rated AC 28V
Body Length or Diameter 13.0048mm
Body Breadth 12.7 mm
Actuator Type Round, Button
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 100,000 Cycles
Actuator Travel 3.8862 mm
Bushing Length 0.335 inch
Actuator Finish NICKEL
Dimensions
Body Height 40.513mm
Length - Termination 0.157 inch
Actuator Length 0.185 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
