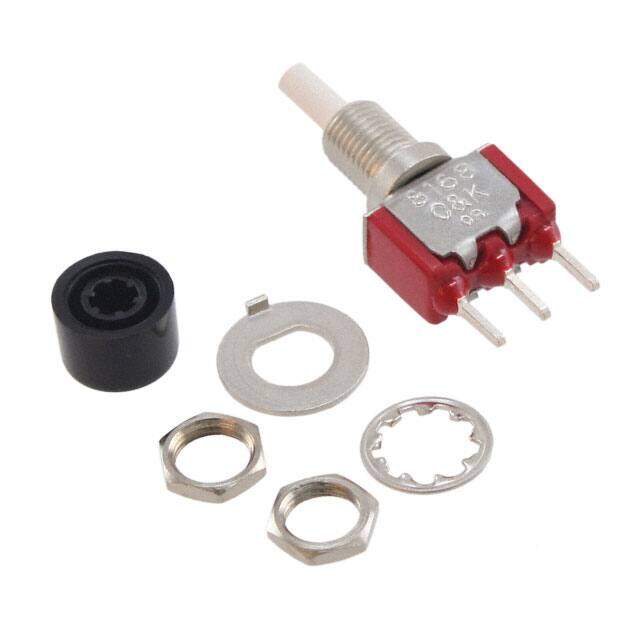

8168SHCQE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
8060 Series SPDT On-On 6 A 120 V Pushbutton Switch
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.3984
≥1 USD $9.3984
≥10 USD $8.47088
≥100 USD $8.116416
≥500 USD $7.71716
≥1000 USD $7.406608
≥3000 USD $6.963114
Inventory: 136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Mount Panel, Snap in, Through Hole
Mounting Type Panel Mount, Rear
Housing Material Stainless Steel
Actuator Material Glass, Nylon, Polyester
Technical
Operating Temperature -30°C~65°C
Packaging Tray
Published 2012
Series 8060
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 6A AC/DC
Orientation Straight
Depth 9.53mm
Current Rating 6A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Contact Current Rating 6A
Dimensions
Length 12.7mm
Actuator Length 10.51mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
