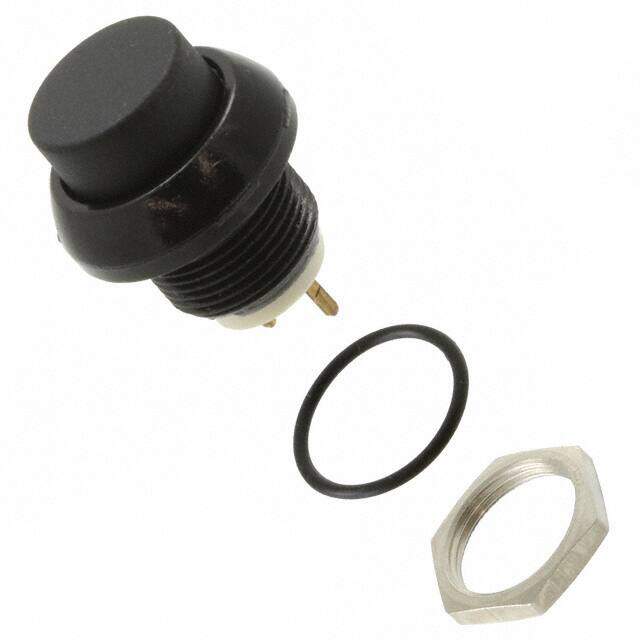

ICP3PAD2104
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 5A 48V
PDF
/
Inventory: 8020
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Actuator Length 0.275 inch
Length - Termination 0.133 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
Technical
Bushing Diameter 0.472 inch
Bushing Length 0.267 inch
Actuator Travel 1.7018 mm
Contact (DC) Max Rating R Load 5A@28VDC
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 48V
Throw Configuration SPST
Electrical Life 500,000 Cycles
Dielectric Withstanding Voltage 1500VRMS V
Max Voltage Rating (AC) 48V
Contact Current(DC)-Max 5A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Voltage - Rated AC 48V
Termination Style PC Pin
Current Rating 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 500mA AC 5A DC
Voltage - Rated DC 28V
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series IC
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
End Contact Plating GOLD
End Contact Material SILVER
Center Contact Material SILVER
Center Contact Plating GOLD
Actuator Material POLYAMIDE
Mounting Type Panel Mount, Front
Mount Front, Panel, Through Hole
Supply Chain
Factory Lead Time 13 Weeks
