IRP3F422
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

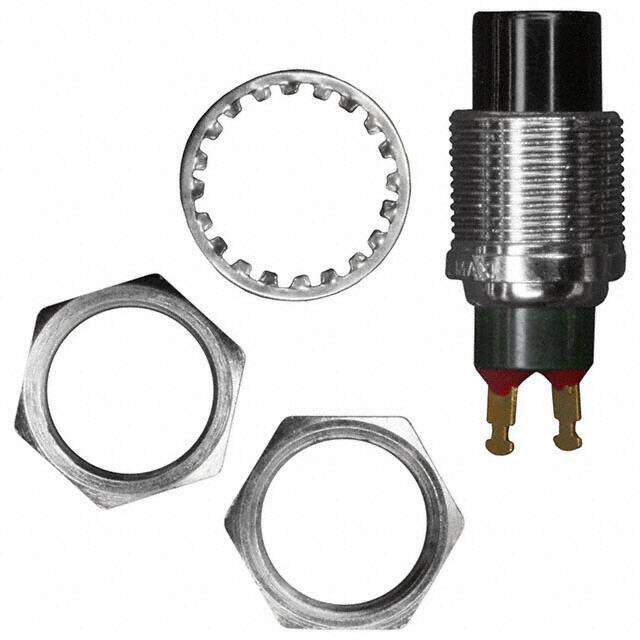

Pushbutton Switches IP67 Sealed Pushbutton Switch
PDF
/
Buying Options
Total Price: USD $38.8
Unit Price: USD $38.804595
≥1 USD $38.804595
≥10 USD $36.608107
≥100 USD $34.535953
≥500 USD $32.581091
≥1000 USD $30.736877
Inventory: 1142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Panel
Insulation Material THERMOPLASTIC
Actuator Material POLYAMIDE
Center Contact Plating GOLD
Center Contact Material SILVER
End Contact Material SILVER
End Contact Plating GOLD
Technical
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire
ECCN Code EAR99
HTS Code 8536.50.90.31
Packing Method BULK
Body Length or Diameter 16mm
Operating Temperature (Max) 85°C
Actuator Type ROUND/FLAT TYPE
Operating Temperature (Min) -40°C
Contact Resistance 0.1mOhm
Insulation Resistance 1000000000Ohm
Contact Current(DC)-Max 0.2A
Sealing EPOXY TERMINAL SEALED; IP67
Dielectric Withstanding Voltage 1500VRMS V
Electrical Life 500000 Cycle(s)
Throw Configuration SPST
Max Voltage Rating (DC) 48V
Switch Type PUSHBUTTON SWITCH
Contact Current(AC)-Max 0.2A
Contact (AC) Max Rating R Load .2A@250VAC
Contact (DC) Max Rating R Load .2A@48VDC
Contact Voltage(AC)-Max 250V
Actuator Color BLACK
Actuator Travel 1.5748 mm
Switch Action MOMENTARY-TACTILE
Operating Force-Max 6 N
Bushing Diameter 0.63 inch
Dimensions
Body Height 23mm
Actuator Length 0.274 inch
Compliance
RoHS Status ROHS3 Compliant
