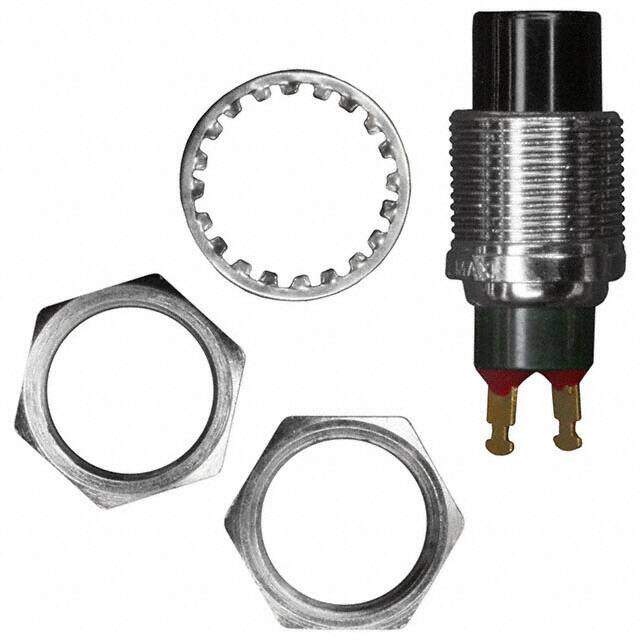

8531TZBE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $7.44
Unit Price: USD $7.4448
≥1 USD $7.4448
≥10 USD $6.688
≥100 USD $6.379648
≥500 USD $6.10522
≥1000 USD $5.865094
≥3000 USD $5.55639
Inventory: 262
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material Glass, Phenolic, Polyester
Technical
Operating Temperature -30°C~65°C
Packaging Tray
Published 2010
Series 8500
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Straight
Termination Style Solder Lug
Voltage - Rated AC 20V
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 11.91mm Dia
Color - Actuator/Cap Black
Max Voltage Rating (AC) 20V
Electrical Life 250,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 20V
Dimensions
Actuator Length 6.35mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
