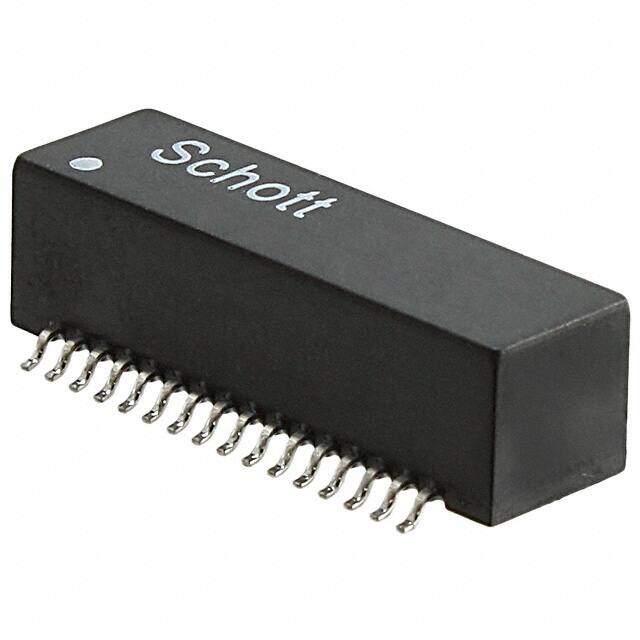

37533 image
Favorite
37533 image
Favorite
RoHS
/
Package SMD/SMT
Category Transformers / Pulse Transformers
Description TRANSF QUAD T1/E1 1:1.36&1:2 SMD
PDF
/
Buying Options
Total Price: USD $2.4
Unit Price: USD $2.4024
≥1 USD $2.4024
≥10 USD $2.3452
≥100 USD $2.30032
≥500 USD $2.255334
Inventory: 1068
Minimum: 1
-
+

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case SMD/SMT

Technical

Packaging Tape & Reel (TR)
Published 2001
Size / Dimension 1.000Lx0.300W 25.40mmx7.62mm
Part Status Discontinued
Moisture Sensitivity Level (MSL) Not Applicable
Inductance 1.2mH
Transformer Type T1/E1 (Quad)
Turns Ratio - Primary:Secondary 1:1.36, 1:2

Dimensions

Height Seated (Max) 0.290 7.37mm
Length 25.4mm
Width 7.62mm

Compliance

RoHS Status Non-RoHS Compliant
