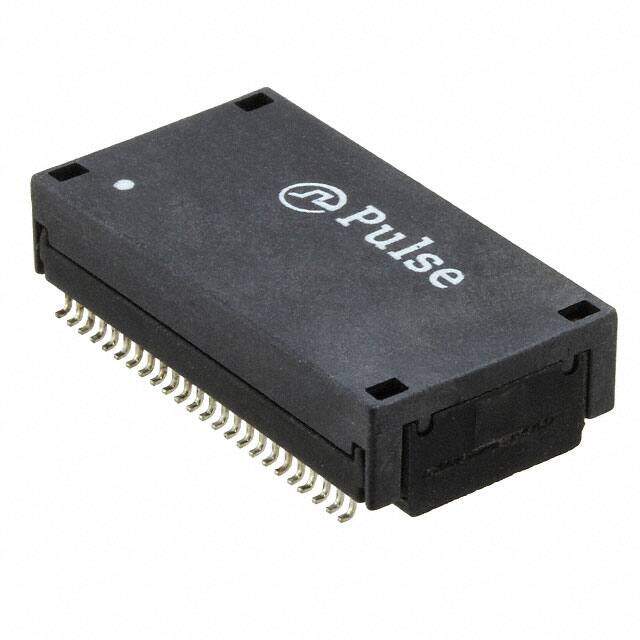

HX5014FNLT
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Transformers / Pulse Transformers
Description
Audio & Signal Transformers 1000BaseT SMD NonPoE 350uH .65Ohms 2-Port
PDF
/
Buying Options
Total Price: USD $39.65
Unit Price: USD $39.653519
≥1 USD $39.653519
≥250 USD $15.821758
≥500 USD $15.293972
≥1000 USD $15.032705
Inventory: 8451
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 14.99mm
Length 27.81mm
Height Seated (Max) 0.285 7.24mm
Technical
Turns Ratio (NpNs) 1:1
Turns Ratio - Primary:Secondary 1CT:1CT Transmitter, 1CT:1CT Receiver
Transformer Type LAN 10/100/1000 Base-T
Isolation Voltage 1500V
Application GENERAL PURPOSE
Inductance 350μH
Physical Dimension L27.81XB14.99XH7.24 (mm)
Number of Functions 4
Additional Feature HEIGHT DIMENSION INCLUDES TERMINALS ALSO
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 1.095Lx0.590W 27.81mmx14.99mm
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
