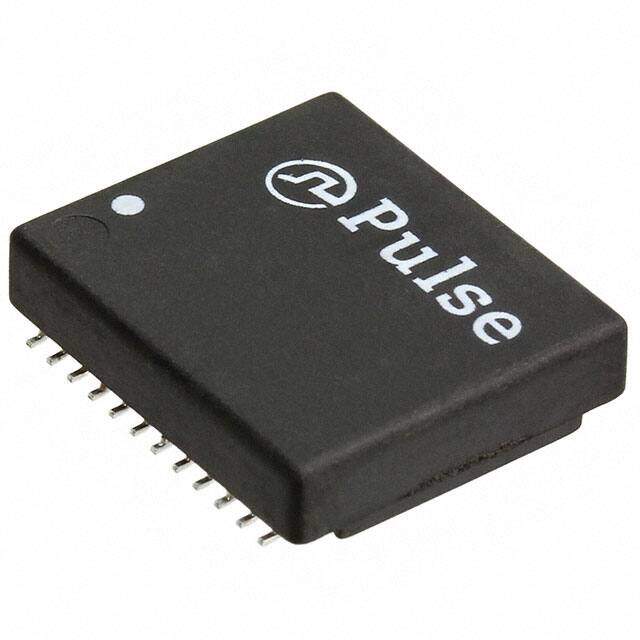

H5007T
RoHS
/
Package SMD/SMT
Category Transformers / Pulse Transformers
Description
Telecom Transformer 1:1 24Term. Gull Wing SMD
PDF
/
Buying Options
Total Price: USD $20.3
Unit Price: USD $20.2958
≥1 USD $20.2958
≥10 USD $16.6535
≥100 USD $16.1329
≥500 USD $15.6123
≥1000 USD $15.09265
Inventory: 1158
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Width 12.2mm
Length 17.53mm
Height Seated (Max) 0.217 5.51mm
Height 5.51mm
Technical
Return Loss -18 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type LAN 10/100/1000 Base-T
Isolation Voltage 1.5kV
Insertion Loss (dB) 1 dB
Lead/Base Style Gull Wing
Physical Dimension L17.53XB12.2XH5.51 (mm)
Depth 16mm
Number of Functions 1
Shielding Unshielded
Additional Feature HEIGHT DIMENSION INCLUDES TERMINAL ALSO
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
Size / Dimension 0.690Lx0.480W 17.53mmx12.20mm
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C
Physical
Weight 2.700009g
Number of Pins 24
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
