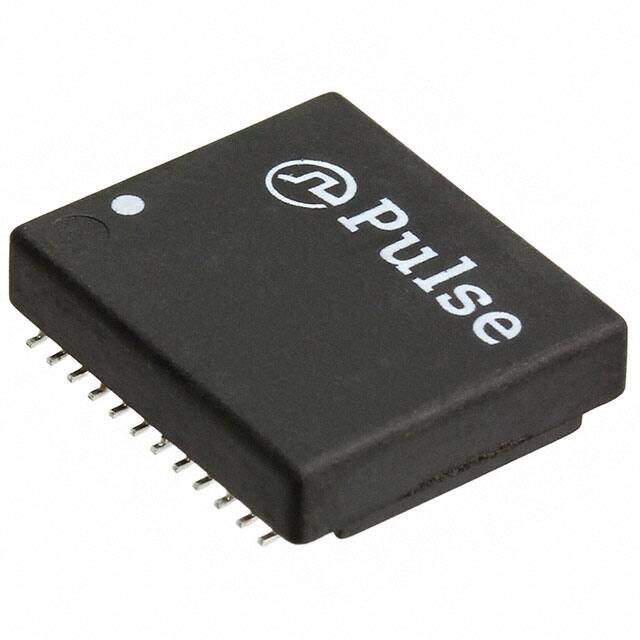

H5015FNL
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Transformers / Pulse Transformers
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
PDF
/
Buying Options
Total Price: USD $8.36
Unit Price: USD $8.36
≥1 USD $8.36
≥10 USD $6.40464
≥100 USD $5.426432
≥500 USD $5.337376
≥1000 USD $5.070472
≥3000 USD $5.017091
Inventory: 216
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 24
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Published 2013
Size / Dimension 0.695Lx0.596W 17.66mmx15.14mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Depth 15.75mm
Inductance 350μH
Lead/Base Style Gull Wing
Insertion Loss (dB) -1.2 dB
Transformer Type LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary 1:1
Return Loss -16 dB
Dimensions
Height Seated (Max) 0.180 4.57mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
