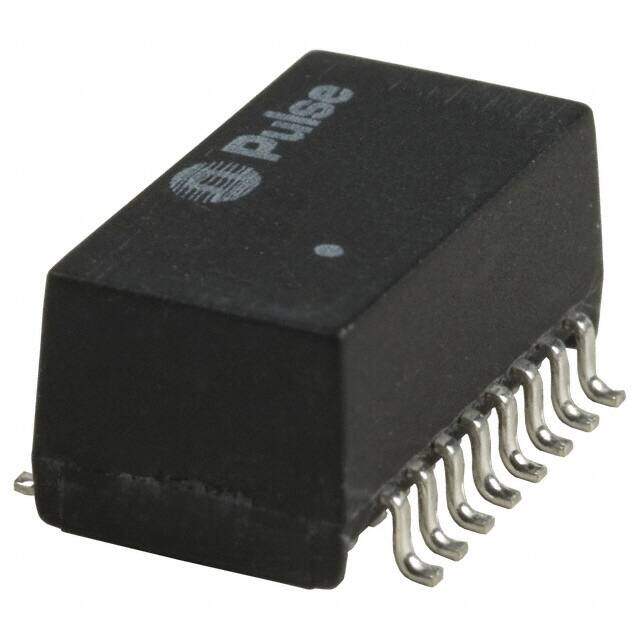

H1260NLT
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Transformers / Pulse Transformers
Description
Telecom Transformer 1:1 16Term. Gull Wing SMD
PDF
/
Buying Options
Total Price: USD $4.48
Unit Price: USD $4.4792
≥1 USD $4.4792
≥10 USD $3.62824
≥100 USD $2.93392
≥500 USD $2.748416
≥1000 USD $2.624952
≥3000 USD $2.547741
Inventory: 1157
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 7.11mm
Length 12.7mm
Height Seated (Max) 0.235 5.97mm
Height 6mm
Technical
Return Loss -10 dB
Turns Ratio - Primary:Secondary 1:1
Transformer Type LAN 10G Base-T
Isolation Voltage 1.5kV
Insertion Loss (dB) -1.2 dB
Application 10/100 BASE-TX; ETHERNET
Lead/Base Style Gull Wing
DC Resistance (DCR) 650mOhm
Inductance 350μH
Physical Dimension L12.7XB7.11XH6.0 (mm)
Depth 9.65mm
Number of Functions 1
Shielding Unshielded
Additional Feature HEIGHT DIMENSION INCLUDES TERMINALS ALSO
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.500Lx0.280W 12.70mmx7.11mm
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C
Physical
Weight 0.1oz 2.85g
Number of Pins 16
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
