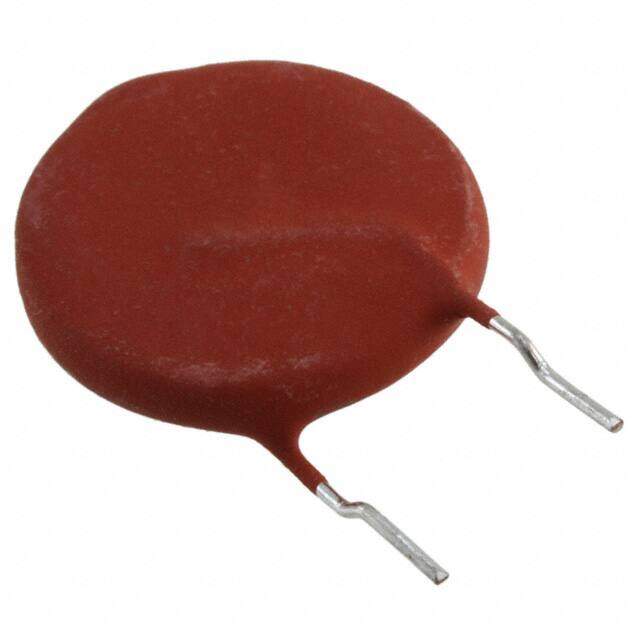

PTGL18AR6R0H8B72B0
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 265V 380MA RADIAL
PDF
/
Inventory: 6623
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.965 24.50mm
Technical
Resistance @ 25°C 6Ohm
Trip Current 715mA
Thermistor Application OVERLOAD PROTECTION
Hold Current 380mA
Current - Max 4.1A
Max Current Rating 4.1A
Max Supply Voltage 265V
Lead Spacing 0.295 7.50mm
Operating Supply Voltage 265V
Approval Agency UL
Depth 6mm
Max Power Dissipation 3.7W
HTS Code 8533.40.80.70
Additional Feature PTC TRIP CURRENT AT -10 DEGREE IS 0.83A
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 6Ohm
Type Ceramic
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance 25%
Size / Dimension 0.728Dia x 0.217 T 18.50mmx5.50mm
Series POSISTOR?, PTGL
Packaging Bulk
Operating Temperature -10°C~60°C
Physical
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Disc
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
