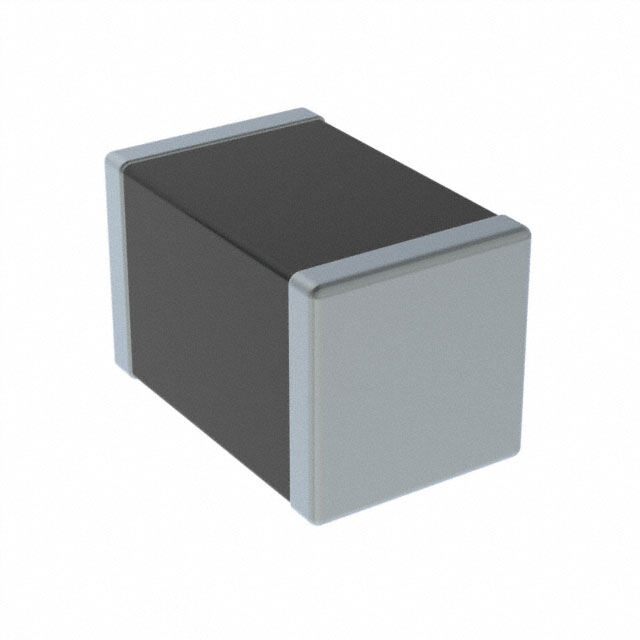

PRG21BB220MB1RK
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Circuit Protection / PTC Resettable Fuses
Description
Thermistor PTC 22 Ohm 20% 2-Pin 0805 Surface Mount Solder Pad Embossed T/R
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.55
≥100 USD $0.473792
≥500 USD $0.456896
≥1000 USD $0.389136
≥3000 USD $0.338413
Inventory: 14378
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness (Max) 0.057 1.45mm
Height 1.25mm
Technical
Resistance @ 25°C 22Ohm
Trip Current 110mA
Current - Trip (It) 91mA
Thermistor Application OVERLOAD PROTECTION
Current - Hold (Ih) (Max) 44mA
Hold Current 30mA
Terminal Placement DEND
Max Current Rating 1.1A
Voltage 20V
Case Code (Imperial) 0805
Approval Agency UL
Case Code (Metric) 2012
Current Rating 1.1A
Depth 1.25mm
HTS Code 8533.40.80.70
Additional Feature PTC TRIP CURRENT AT -10 DEGREE IS 0.11A
Resistance 22Ohm
Type Ceramic
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance 20%
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Series POSISTOR?, PRG
Packaging Tape & Reel (TR)
Operating Temperature -20°C~60°C
Physical
Number of Pins 2
Terminal Shape FLAT
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
